PI环境下考虑保鲜努力的冷链产品生产-库存-运输联合优化模型与求解

doi:10.16381/j.cnki.issn1003-207x.2022.1949

Abstract

Abstract:

Due to the lack of collaboration and interconnections between firms， the cost and wastage are usually quite high in traditional cold chain logistics. The advent of Physical Internet has motivated us to explore the potential value of the integrated production-inventory-transportation optimization problem for cold chain products. Consequently， the production-inventory-transportation joint optimization problem considering cold chain products in Physical Internet is proposed. Considering the characteristics of perishable cold chain products and high logistics costs， the freshness-keeping efforts and the decay of freshness are integrated to the production-inventory-transportation model in Physical Internet. The relevant mixed integer linear programming model is constructed to quantify the advantage of Physical Internet. Improved particle swarm optimization is designed to solve the model. Moreover， the validity and accuracy of model and algorithm are verified by computational experiments about production-inventory-transportation system of Shenyang Northeast Cold Fresh Port. The influence of different parameters on preservation effort cost and freshness attenuation is obtained via sensitivity analysis， which can provide scientific decision-making reference for enterprise operation and management.

Key words: Physical Internet, freshness-keeping effort, freshness decay, production-inventory-transport joint optimization, improved partial swarm optimization algorithm

CLC Number:

C931

Shoufeng Ji, Hongyu Liu, Lijie Wang, Yuanyuan Ji. Joint Optimization Model and Algorithm of Cold Chain Product Production-inventory-transportation Considering Freshness-keeping Effort in the Physical Internet[J]. Chinese Journal of Management Science, 2025, 33(8): 166-176.

Figures/Tables 16

温度(℃)	保鲜努力 $τ$
2	0.8
4	0.65
6	0.5
8	0.35
10	0.2

温度	保鲜努力 $τ$	绝对温度(K)	COP	冷却成本系数
2℃	0.8	275.15	11.96	1.58
4℃	0.65	277.15	13.20	1.43
6℃	0.5	279.15	14.69	1.29
8℃	0.35	281.15	16.54	1.14
10℃	0.2	283.15	18.88	1.00

保鲜努力 $τ$	保质期(天)	新鲜度 $θ$ 衰减量(%)
0.8	34	2.9
0.65	29	3.4
0.5	24	4.2
0.35	19	5.3
0.2	14	7.1

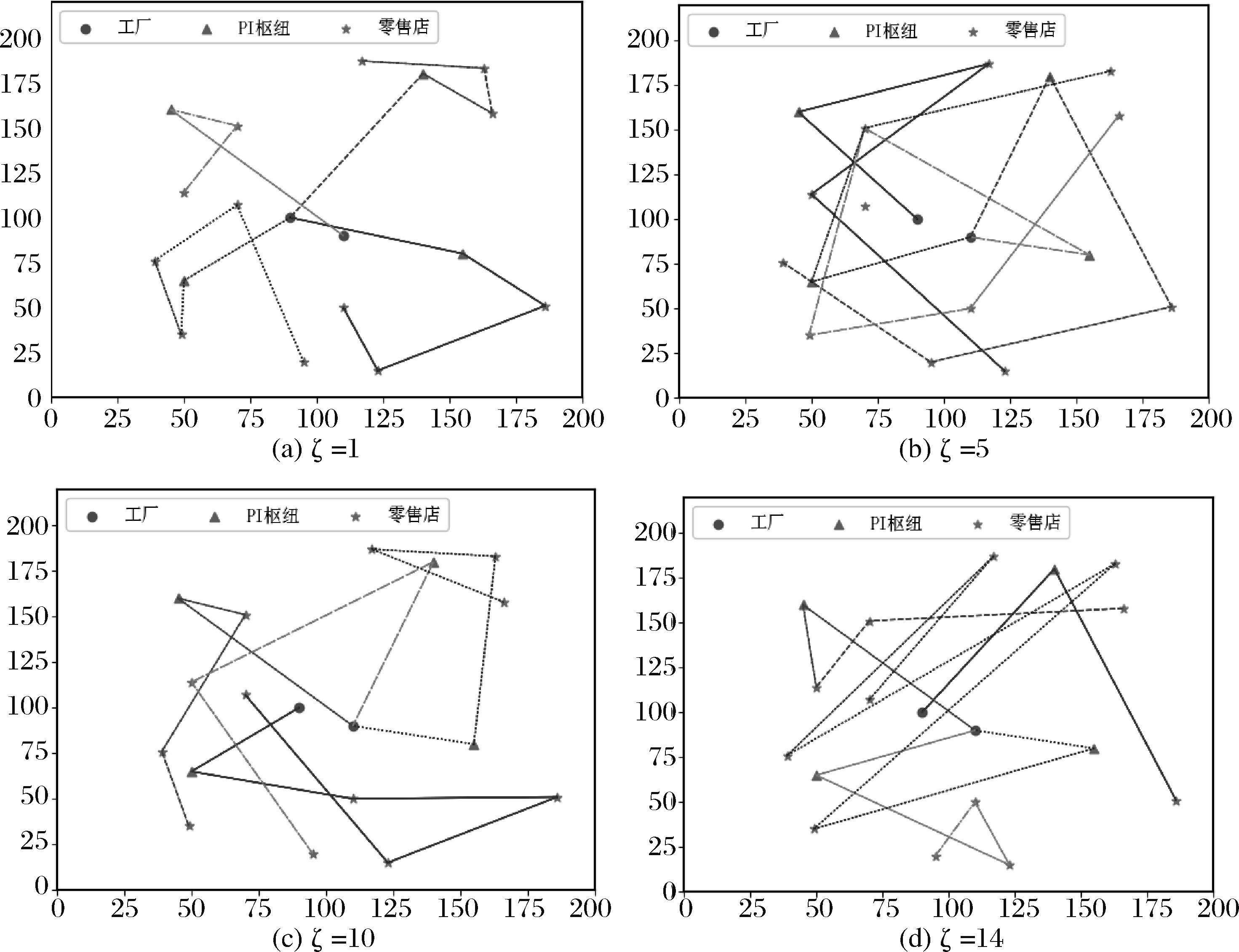

时间	运输路径	运输过程保鲜努力		工厂储存保鲜努力
时间	运输路径	工厂	PI枢纽	D1	D2
$ς = 1$	D1→H1→N2→N5→N9→N8	0.35	0.65	0.5	0.5
	D2→H2→N4→N6	0.5	0.65
	D1→H3→N3→N7→N12	0.5	0.35
	D1→H4→N10→N1→N11	0.65	0.35
$ς = 5$	D2→H1→N4→N1	0.8	0.8	0.5	0.5
	D1→H2→N11→N6→N7	0.8	0.8
	D2→H3→N9→N2→N12→N10	0.8	0.65
	D2→H4→N3→N8→N5	0.8	0.8
$ς = 10$	D1→H1→N12→N3→N7→N9	0.5	0.35	0.2	0.65
	D2→H2→N4→N5→N2	0.65	0.35
	D2→H3→N1→N11→N10	0.8	0.5
	D2→H4→N6→N8	0.65	0.65
$ς = 14$	D2→H1→N7→N12→N8	0.5	0.65	0.5	0.2
	D2→H2→N6→N4→N10	0.35	0.8
	D2→H3→N2→N1→N5→N11→N9	0.65	0.65
	D1→H4→N3	0.8	0.65

保鲜努力 $τ$	冷却成本系数
0.8	1.58
0.65	1.43
0.5	1.29
0.35	1.14
0.2	1.00

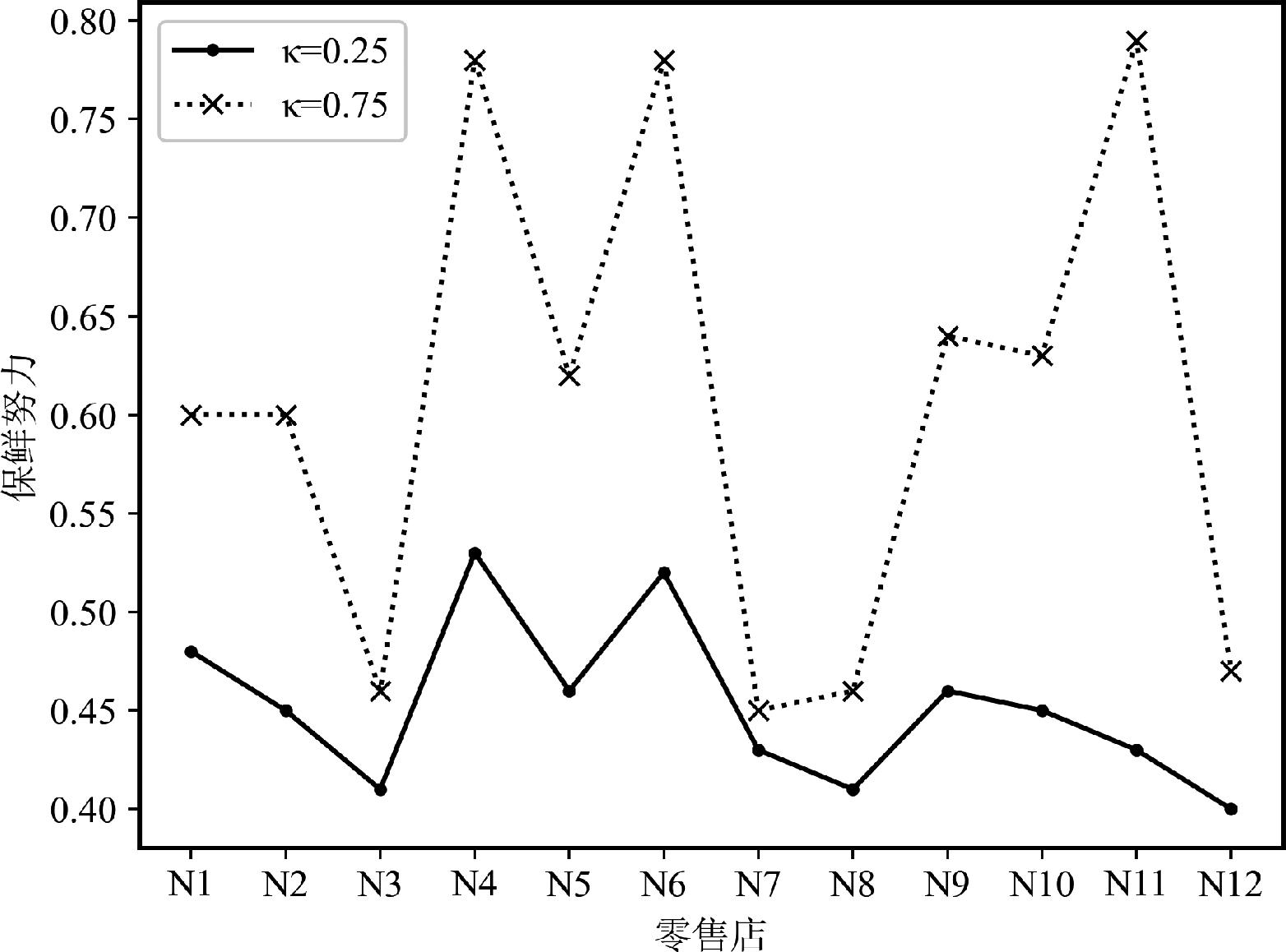

零售店	保鲜努力 $τ$
N1	0.48
N2	0.45
N3	0.41
N4	0.53
N5	0.46
N6	0.52
N7	0.43
N8	0.41
N9	0.46
N10	0.45
N11	0.43
N12	0.40

零售店	保鲜努力 $τ$
N1	0.60
N2	0.60
N3	0.46
N4	0.78
N5	0.62
N6	0.78
N7	0.45
N8	0.46
N9	0.64
N10	0.63
N11	0.79
N12	0.47

α

β

总经济成本(元)

0.04

0.06

0.08

0.1

0.12

0.14

0.15

194881.5708

208484.3045

221889.8453

235247.6140

248859.4952

263840.8365

β

α

总经济成本(元)

0.05

0.1

0.15

0.2

0.25

0.1

243152.9521

239850.8301

235247.6140

232649.1307

229057.0427

References 26

[1]	Montreuil B. Toward a physical internet： Meeting the global logistics sustainability grand challenge［J］. Logistics Research， 2011， 3（2-3）： 71-87.
[2]	Yang Y， Pan S， Ballot E. A model to take advantage of physical internet for vendor inventory management［J］. IFAC-PapersOnLine， 2015， 48（3）： 1990-1995.
[3]	Mervis J. The information highway gets physical［J］. Science， 2014， 344（6188）： 1104-1107.
[4]	Pan S， Ballot E， Huang G Q， et al. Physical internet and interconnected logistics services： Research and applications［J］. International Journal of Production Research， 2017， 55（9）： 2603-2609.
[5]	Venkatadri U， Krishna K S， Ali Ülkü M. On physical internet logistics： Modeling the impact of consolidation on transportation and inventory costs［J］. IEEE Transactions on Automation Science and Engineering， 2016， 13（4）： 1517-1527.
[6]	Crainic T G， Montreuil B. Physical internet enabled hyperconnected city logistics［J］.Transportation Research Procedia， 2016，12： 383-398.
[7]	Pan S， Nigrelli M， Ballot E， et al. Perspectives of inventory control models in the physical Internet： A simulation study［J］. Computers & Industrial Engineering， 2015， 84： 122-132.
[8]	Yang Y， Pan S， Ballot E. Innovative vendor-managed inventory strategy exploiting interconnected logistics services in the Physical Internet［J］. International Journal of Production Research， 2017， 55（9）： 2685-2702.
[9]	Leung E K H， Lee C K H， Ouyang Z. From traditional warehouses to physical Internet hubs： A digital twin-based inbound synchronization framework for PI-order management［J］. International Journal of Production Economics， 2022， 244： 108353.
[10]	Ben Mohamed I， Klibi W， Labarthe O， et al. Modelling and solution approaches for the interconnected city logistics［J］.International Journal of Production Research， 2017， 55（9）： 2664-2684.
[11]	Chargui T， Ladier A L， Bekrar A， et al. Towards designing and operating physical Internet cross-docks： Problem specifications and research perspectives［J］. Omega， 2022， 111： 102641.
[12]	Ji S F， Peng X S， Luo R J. An integrated model for the production-inventory-distribution problem in the Physical Internet［J］. International Journal of Production Research， 2019， 57（4）： 1000-1017.
[13]	Pal A， Kant K. F2π： A physical internet architecture for fresh food distribution networks ［C］ // Proceedings of the IPIC 2016-3rd International Physical Internet Conference， Atlanta， GA USA， June 29-July 1， 2016.
[14]	Cai X， Chen J， Xiao Y， et al. Optimization and coordination of fresh product supply chains with freshness-keeping effort［J］. Production and Operations Management， 2010， 19（3）： 261-278.
[15]	Coelho L C， Laporte G. Optimal joint replenishment， delivery and inventory management policies for perishable products［J］. Computers & Operations Research， 2014， 47： 42-52.
[16]	郑宇婷，李建斌，陈植元，等. 不确定需求下的冷链分销商最优决策［J］.管理科学学报，2019，22（1）： 94-106.
	Zheng Y T， Li J B， Chen Z Y， et al. Optimal decisions of cold chain distributor under uncertain in demand［J］. Journal of Management Sciences in China， 2019， 22（1）： 94-106.
[17]	王晶，刘昊天，赵然. 基于食品安全的生鲜食品冷链运营优化研究［J］. 系统工程理论与实践， 2018， 38（1）： 122-134.
	Wang J， Liu H T， Zhao R. The optimization of cold chain operation based on fresh food safety［J］. Systems Engineering-Theory & Practice， 2018， 38（1）： 122-134.
[18]	刘墨林，但斌，马崧萱. 考虑保鲜努力与增值服务的生鲜电商供应链最优决策与协调［J］. 中国管理科学， 2020， 28（8）： 76-88.
	Liu M L， Dan B， Ma S X. Optimal strategies and coordination of fresh E-commerce supply chain considering freshness-keeping effort and value-added service［J］. Chinese Journal of Management Science， 2020， 28（8）： 76-88.
[19]	但斌，陈军. 基于价值损耗的生鲜农产品供应链协调［J］. 中国管理科学， 2008， 16（5）： 42-49.
	Dan B， Chen J. Coordinating fresh agricultural supply chain under the valuable loss［J］. Chinese Journal of Management Science， 2008， 16（5）： 42-49.
[20]	王磊，但斌. 考虑消费者效用的生鲜农产品供应链保鲜激励机制研究［J］. 管理工程学报， 2015， 29（1）： 200-206.
	Wang L， Dan B. The incentive mechanism for preservation in fresh agricultural supply chain considering consumer utility［J］. Journal of Industrial Engineering and Engineering Management， 2015， 29（1）： 200-206.
[21]	Rong A， Akkerman R， Grunow M. An optimization approach for managing fresh food quality throughout the supply chain［J］. International Journal of Production Economics， 2011， 131（1）： 421-429.
[22]	Yakavenka V， Mallidis I， Vlachos D， et al. Development of a multi-objective model for the design of sustainable supply chains： The case of perishable food products［J］. Annals of Operations Research， 2020， 294： 593-621.
[23]	王淑云，姜樱梅，牟进进. 基于新鲜度的冷链一体化库存与定价联合决策［J］. 中国管理科学， 2018， 26（7）： 132-141.
	Wang S Y， Jiang Y M， Mou J J. Inventory and pricing decision of an integrated cold chain based on freshness［J］. Chinese Journal of Management Science， 2018， 26（7）： 132-141.
[24]	赵泉午，姚珍珍，林娅. 面向新零售的生鲜连锁企业城市配送网络优化研究［J］. 中国管理科学， 2021， 29（9）： 168-179.
	Zhao Q W， Yao Z Z， Lin Y. Research on urban distribution network optimization of fresh chain enterprises under new retail［J］. Chinese Journal of Management Science， 2021， 29（9）： 168-179.
[25]	任向阳，吕娜. 生鲜品电商与冷链宅配联合运送优化研究［J］. 中国管理科学， 2022， 30（2）： 127-136.
	Ren X Y， Lv N. Optimization of joint delivery of fresh products E-commerce and cold chain home delivery［J］. Chinese Journal of Management Science， 2022， 30（2）： 127-136.
[26]	Shi Y， Eberhart R. A modified particle swarm optimizer［C］//Proceedings of the IEEE World Congress on Computational Intelligence，Anchorage， AK， USA， May 4-9， IEEE， 1998： 69-73.
