电商模式下考虑农户满意度的生鲜农产品产地冷库选址研究

doi:10.16381/j.cnki.issn1003-207x.2022.1260

摘要/Abstract

摘要：

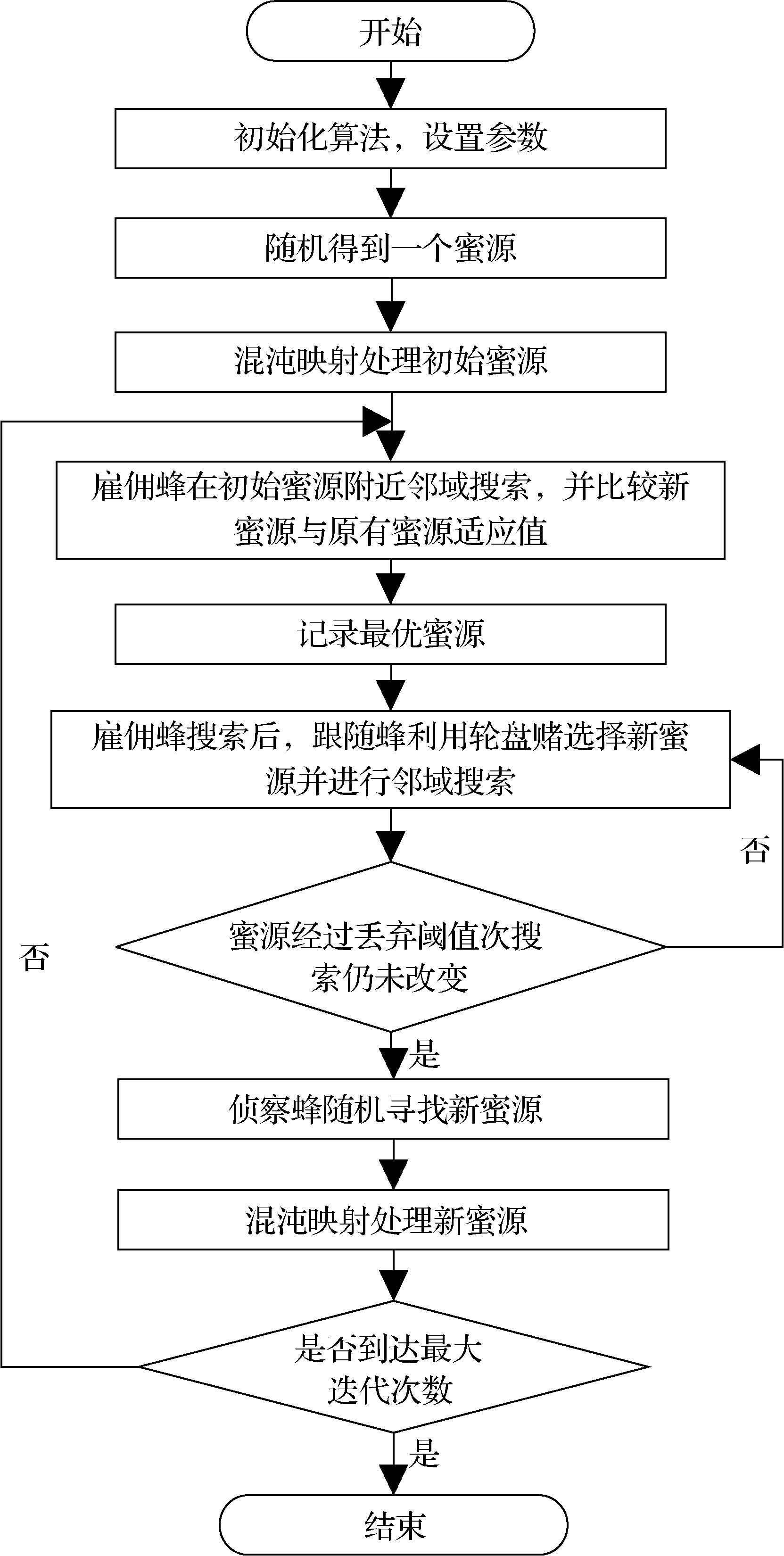

针对电商农户小批量且分散的生鲜农产品冷藏需求，研究了产地型冷库选址问题。通过冷库服务可靠性和运输新鲜度变化衡量农户满意度并将其引入选址模型，构建了以冷库总成本最小为目标的产地型冷库选址模型；针对模型设计了基于混沌映射的人工蜂群改进算法用于模型求解，在初始化和侦察蜂搜索阶段引入混沌映射以提升算法寻优求解速度；以陕西省洛川县苹果冷库选址为例验证了模型的有效性和算法的优势性，并探究了需求量、运输距离和惩罚成本变动对选址结果的影响。结果表明：农户满意度对冷库选址结果有重要影响，增加冷库数量比提升冷库容量更有利于降低冷库总成本；在保证算法求解质量的情况下，人工蜂群改进算法的平均求解时间与常规人工蜂群算法和粒子群算法相比分别减少了10.77%和51.60%。

关键词: 生鲜农产品电商, 产地型冷库, 选址优化, 农户满意度

Abstract:

With the rapid development of E-commerce， several farmers have opened online sales channel and shifted to a sale model of agricultural products through both online and offline. Fresh agricultural products need low temperature storage after harvest because of their perishable characteristic. Small-scale farmers in China often seek third-party cold storage services. However， because of the small scale and scattered production of farmers， their cold storage services put forward new requirements of convenience and availability. Conventional cold storage operators mostly serve enterprises， wholesalers and cooperatives. Meanwhile， the existing layout of cold storage is hard to meet the specific requirements of small-scale farmers. Therefore， how to choose the locations of cold storages and determine the service relationship of each storage to farmers become a key issue for many cold storage operators. In view of the location problem， many previous models mainly pursued to minimize costs while ignoring customers' satisfaction. Combined with the characteristics of small and dispersed cold storage demand of E-commerce farmers， farmers' satisfaction is measured from two dimensions： reliability of cold storage service and freshness of fresh products in transportation. Motivated by these observations， in the work a mixed integer linear programming model is proposed， considering factors such as distance， demand， service radius， fixed cost， variable cost， transportation cost and farmers' satisfaction. The farmers' satisfaction is introduced into the model in the form of penalty cost. The objective of the model is to minimize the total cost by optimizing the location of each cold storage and identifying the service relationship between cold storage and the farmers. In addition， an improved artificial bee colony algorithm is proposed， where the chaotic mapping is introduced in the initialization and scout bee search stages to improve the speed of the algorithm. The effectiveness and advantage of the improved artificial bee colony algorithm （IABC） are demonstrated by practical and random examples. Compared with the artificial bee colony algorithm （ABC） and particle swarm optimization algorithm （PSO）， the average solution time of IABC is reduced by 10.77% and 51.6% respectively. In the case study， the example data of apple cold storage locations in Luochuan County are taken as an example to verify the effectiveness of the work， and the influences of demand size， transportation distance and farmer satisfaction penalty cost on total cost， location results and service relationship are explored. Experimental results show that the total cost of cold storage is optimal when constructing 7 cold storages in the case of Luochuan County. The farmer's satisfaction has an important impact on the location of cold storage. Moreover， when the demand and transportation distance increase， increasing the number of cold storage is more advantageous than increasing the capacity of cold storage， which can effectively assist cold storage operators to make location decisions. Reasonable cold storage location decisions can effectively reduce postharvest losses of fresh agricultural products and have important significance to entire supply chain. Considering cold storage reliability and freshness of transportation services for farmers' satisfaction provides a new method of measuring the cold storage service.

Key words: fresh agricultural produce E-commerce, origin-based cold storage, location optimization, farmer satisfaction

中图分类号:

F253

梁旭, 韩继良, 阮俊虎, 卞亦文. 电商模式下考虑农户满意度的生鲜农产品产地冷库选址研究[J]. 中国管理科学, 2025, 33(3): 314-325.

Xu Liang, Jiliang Han, Junhu Ruan, Yiwen Bian. Study on the Location of Origin-based Cold Storage Considering the Satisfaction of Farmers under the Fresh E-commerce[J]. Chinese Journal of Management Science, 2025, 33(3): 314-325.

图/表 13

图1

图2

图3

图4

图5

图6

图7

表1

图8

图9

图10

图11

表2

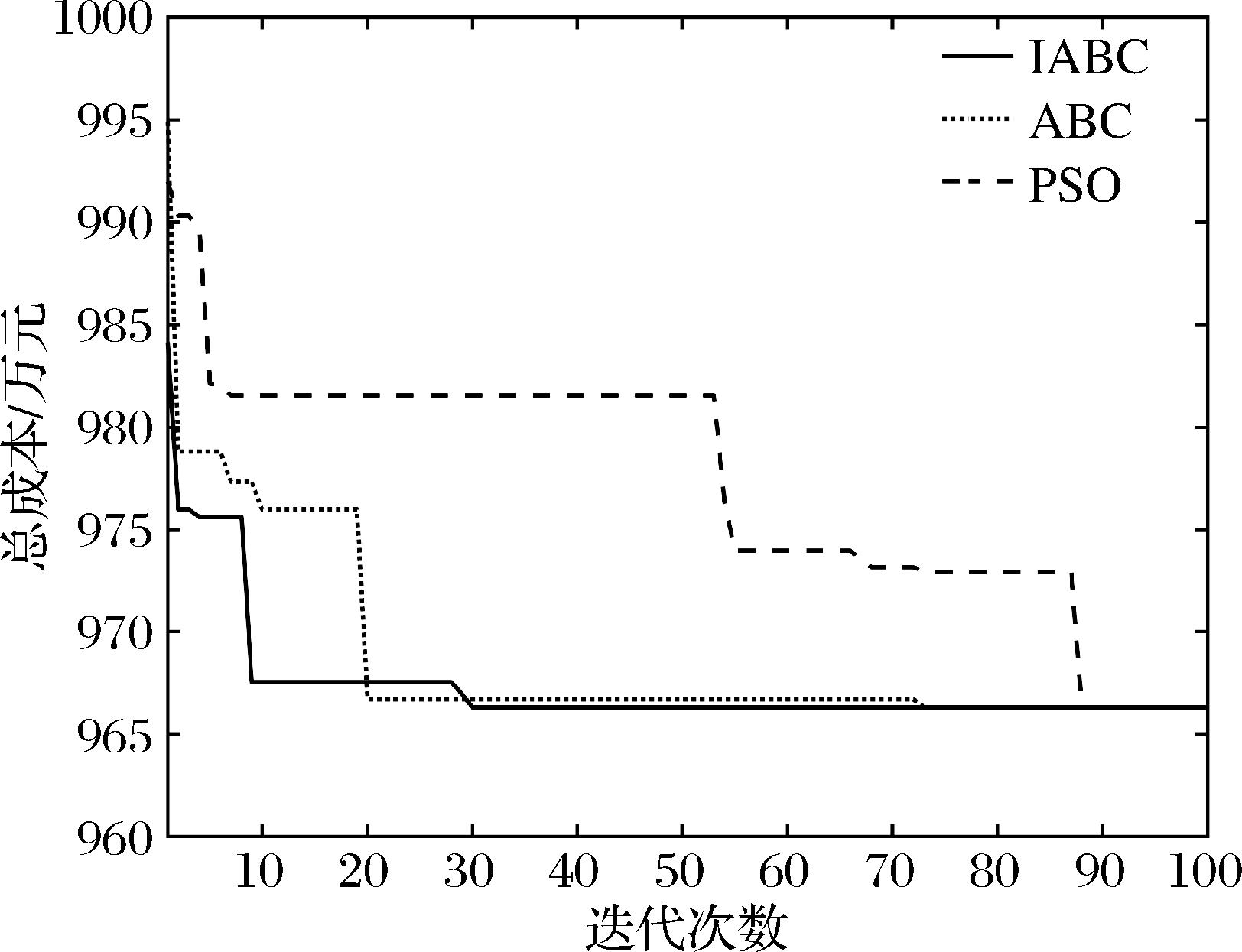

IABC、ABC及PSO算法求解算例的结果对比"

编号	$m$	$F$	$C s$	IABC			ABC			PSO
编号	$m$	$F$	$C s$	AC (万元)	SD	时间(秒)	AC (万元)	SD	时间(秒)	AC (万元)	SD	时间(秒)
1	33	7	-	966.31	0.00	54.04	966.31	0.00	60.56	972.53	0.59	104.72
2	50	7	-	1895.28	3.93	72.43	1901.27	9.41	82.51	1918.90	6.44	131.49
3	100	7	-	4062.96	4.56	124.93	4114.49	28.93	136.39	4130.34	21.59	250.34
4	33	7	+50%	983.07	0.13	56.65	983.16	0.24	88.26	983.52	7.03	101.78
5	33	7	+100%	1030.19	0.13	57.97	1030.24	0.25	63.1	1031.84	2.65	95.6
6	33	7	+150%	1068.01	0.24	61.87	1068.67	2.13	69.66	1169.85	2.77	98.88
7	33	7	+200%	1584.33	0.14	57.52	1584.36	0.14	70.48	1585.53	2.73	99.54

表2

参考文献 40

1	阮俊虎，刘天军，冯晓春，等. 数字农业运营管理：关键问题、理论方法与示范工程［J］. 管理世界， 2020， 36（8）： 222-233.
	Ruan J H， Liu T J， Feng X C， et al. Digital agriculture operation and management： Key issues， methodology and demonstration project［J］. Journal of Management World， 2020， 36（8）： 222-233.
2	宋瑛，谢浩，王亚飞. 农产品电子商务有助于贫困地区农户增收吗——兼论农户参与模式异质性的影响［J］. 农业技术经济， 2022（1）： 65-80.
	Song Y， Xie H， Wang Y F. Can E-commerce of agricultural products increase famer’s income in poverty areas？Impacts of heterogeneous participation patterns of farmers［J］. Journal of Agrotechnical Economics， 2022（1）： 65-80.
3	曾亿武，张增辉，方湖柳，等. 电商农户大数据使用：驱动因素与增收效应［J］.中国农村经济，2019（12）： 29-47.
	Zeng Y W， Zhang Z H， Fang H L， et al. The driving forces and income-added effects of big data usage by rural E-commerce households［J］. Chinese Rural Economy， 2019（12）： 29-47.
4	Ruan J H， Hu X P， Huo X X， et al. An IoT-based E-business model of intelligent vegetable greenhouses and its key operations management issues［J］. Neural Computing and Applications， 2019， 32（19）： 15341-15356.
5	Ruan J H， Wang Y X， Chan F T S，et al. A life cycle framework of green iot：Based agriculture and its finance， operation， and management issues［J］. IEEE Communications Magazine， 2019， 57（3）： 90-96.
6	蒋玉，于海龙，丁玉莲，等. 电子商务对绿色农产品消费溢价的影响分析——基于产品展示机制和声誉激励机制［J］. 中国农村经济， 2021（10）： 44-63.
	Jiang Y， Yu H L， Ding Y L， et al. The impact of E-commerce on green agricultural products price premiums： An analysis based on product display and reputation incentive mechanisms［J］. Chinese Rural Economy， 2021（10）： 44-63.
7	李静，陈亚坤. 农业公司化是农业现代化必由之路［J］. 中国农村经济， 2022（8）： 52-69.
	Li J， Chen Y K. Agricultural corporatization is the only way to agricultural modernization in China［J］. Chinese Rural Economy， 2022（8）： 52-69.
8	丁秋雷，胡祥培，姜洋，等. 考虑新鲜度的农产品冷链物流配送受扰恢复模型［J］. 系统工程理论与实践， 2021， 41（3）： 667-677.
	Ding Q L， Hu X P， Jiang Y， et al. A recovery model for cold chain delivery of agricultural products by considering freshness［J］. Systems Engineering-Theory&Practice， 2021， 41（3）： 667-677.
9	Farahani R Z， Fallahb S， Ruiz R， et al. OR models in urban service facility location： A critical review of applications and future developments［J］. European Journal of Operational Research， 2019， 276（1）： 1-27.
10	Etemadnia H， Goetz S J， Canning P， et al. Optimal wholesale facilities location within the fruit and vegetables supply chain with bimodal transportation options： An LP-MIP heuristic approach［J］. European Journal of Operational Research， 2015， 244（2）： 648-661.
11	Puga M S， Tancrez J S. A heuristic algorithm for solving large location-inventory problems with demand uncertainty［J］. European Journal of Operational Research， 2017， 259（2）： 413-423.
12	Zanjani G S M， Jabalameli M S， Klibi W， et al. A robust location-inventory model for food supply chains operating under disruptions with ripple effects［J］. International Journal of Production Research， 2021， 59（1）： 301-324.
13	Silva A， Coelho L C， Darvish M， et al. Integrating storage location and order picking problems in warehouse planning［J］. Transportation Research Part E： Logistics and Transportation Review， 2020， 140： 102003.
14	Liu Y H， Ehsan D， Mohammad S J， et al. A coordinated location-inventory problem with supply disruptions： A two-phase queuing theory-optimization model approach［J］. Computers & Industrial Engineering， 2020， 142： 106326.
15	Ross A， Khajehnezhad M， Otieno W， et al. Integrated location-inventory modelling under forward and reverse product flows in the used merchandise retail sector： A multi-echelon formulation［J］. European Journal of Operational Research， 2017， 259（2）： 664-676.
16	Osvald A， Stirn L Z. A vehicle routing algorithm for the distribution of fresh vegetables and similar perishable food［J］. Journal of Food Engineering， 2008， 85（2）， 285-295.
17	张杰，李妍峰. 疫情环境下生鲜配送的选址-路径问题［J］. 中国管理科学， 2022， DOI：10.16381/j.cnki.issn1003-207x.2022.0575 .
	Zhang J， Li Y F. Location-routing problem of fresh product distribution in epidemic environment［J］. Chinese Journal of Management Science， 2022， DOI：10.16381/j.cnki.issn1003-207x.2022.0575 .
18	马艳芳，应斌，周晓阳，等. 基于冲突合作关系的生鲜选址-路径多主体优化模型与算法［J］. 系统工程理论与实践， 2020， 40（12）： 3194-3209.
	Ma Y F， Ying B， Zhou X Y， et al. Multi-agent optimization model and algorithm for perishable food location-routing problem with conflict and coordination［J］. Systems Engineering-Theory & Practice， 2020， 40（12）： 3194-3209.
19	李娅，王旭坪，林娜，等. 村镇农产品多类型预冷设施选址-路径优化模型及算法［J］. 系统工程理论与实践， 2022，42（1）：3016-3029.
	Li Y， Wang X P， Lin N， et al. The location-routing optimization model and algorithm of multi-type precooling facilities for agricultural products［J］. Systems Engineering-Theory & Practice， 2022，42（1）：3016-3029.
20	Bilir C， Ekici S O， Ulengin F. An integrated multi-objective supply chain network and competitive facility location model［J］. Computers & Industrial Engineering， 2017， 108： 136-148.
21	郭放，黄志红，黄卫来. 考虑前置仓选址与服务策略的同时取送货车辆路径问题研究［J］. 系统工程理论与实践， 2021， 41（4）： 962-978.
	Guo F， Huang Z H， Huang W L. Integrated sustainable planning of fast-pick area network and vehicle routing with simultaneous delivery and pick-up［J］. Systems Engineering-Theory & Practice， 2021， 41（4）： 962-978.
22	吴江，王旻轲，谭涛，等. 非平稳需求下考虑碳配额的供应链选址-库存模型与算法研究［J］. 中国管理科学， 2020， 28（3）： 162-173.
	Wu J， Wang M K， Tan T， et al. Modeling and solving the location-inventory problem with nonstationary demand considering carbon cap-and-trade［J］. Chinese Journal of Management Science， 2020， 28（3）： 162-173.
23	Zhan X R， Mu Y P， Hora M， et al. Service excellence and market value of a firm： An empirical investigation of winning service awards and stock market reaction［J］. International Journal of Production Research， 2020， 59（14）： 1-17.
24	Masoud R， Razieh H， Hamed F A. A bi-objective mixed-model assembly line sequencing problem considering customer satisfaction and customer buying behaviour［J］. Engineering Optimization， 2018， 50（12）： 2123-2142.
25	郭海湘，石咏，李冰毅，等. 模糊需求下的单货源多设施Weber问题［J］. 系统管理学报， 2017， 26（3）： 428-437.
	Guo H X， Shi Y， Li B Y， et al. Single-source capacitated multi-facility weber problem with fuzzy demand［J］. Journal of Systems & Management， 2017， 26（3）： 428-437.
26	王诺，王翊萱，田玺环，等.远海岛礁冷链物流体系优化模型及其集成算法［J］.中国管理科学，2019，27（10）：100-109.
	Wang N， Wang Y X， Tian X H， et al. The optimization model and integrated algorithm if cold chain logistics system of south China sea［J］. Chinese Journal of Management Science， 2019， 27（10）： 100-109.
27	黄凯明，卢才武，连民杰. 三层级设施选址-路径规划问题建模及算法研究［J］. 系统工程理论与实践， 2018， 38（3）： 743-754.
	Huang K M， Lu C L， Lian M J. Bi-objective fuzzy location model and algorithm for the design of logistics distribution network in B2C e-commerce［J］. Systems Engineering-Theory & Practice，2018，38（3）：743-754.
28	Peng D J， Ye C M， Wan M R. A multi-objective improved novel discrete particle swarm optimization for emergency resource center location problem［J］. Engineering Applications of Artificial Intelligence， 2022， 111： 104725.
29	李想，李苏剑，李宏. 两级选址-路径问题的大规模邻域搜索模拟退火算法［J］. 工程科学学报， 2017， 39（6）： 953-961.
	Li X， Li S J， Li H. Simulated annealing with large-neighborhood search for two-echelon location routing problem［J］. Chinese Journal of Engineering， 2017， 39（6）： 953-961.
30	Jayalakshmi B， Singh A. A hybrid artificial bee colony algorithm for the cooperative maximum covering location problem［J］. International Journal of Machine Learning & Cybernetics， 2015， 8（2）： 1-7.
31	Farahani R Z， Hassani A， Mousavi S M， et al. A hybrid artificial bee colony for disruption in a hierarchical maximal covering location problem［J］. Computers & Industrial Engineering， 2014， 75： 129-141.
32	巩在武，阳佳琦. 考虑灾民心理的多周期应急物资调度不确定规划建模研究［J］.中国管理科学， 2025， 33（3）：209-222.
	Gou Z W， Yang J Q. Study on uncertain programming modeling of multi-period emergency material allocation considering the psychology of victims［J］. Chinese Journal of Management Science， 2025， 33（3）：209-222.
33	Liu L F， Sun S Z， Yu H Y， et al. A modified fuzzy C-means （FCM） clustering algorithm and its application on carbonate fluid identification［J］. Journal of Applied Geophysics， 2016， 129： 28-35.
34	Metlicka M， Davendra D. Chaos driven discrete artificial bee algorithm for location and assignment optimization problems［J］. Swarm and Evolutionary Computation， 2015， 25： 15-28.
35	汤希峰，毛海军，李旭宏. 物流配送中心选址的多目标优化模型［J］. 东南大学学报（自然科学版）， 2009， 39（2）： 404-407.
	Tang X F， Mao H J， Li X H. Multi-objective optimization model of locations for distribution centers［J］. Journal of Southeast University（Natural Science Edition）， 2009， 39（2）： 404-407.
36	马祖军，王一然. 考虑生鲜农产品“最先一公里”损耗的预冷站布局优化［J］. 中国管理科学， 2022， 32（2）：315-323.
	Ma Z J， Wang Y R. Optimal locations of pre-cooling facilities considering the first-mile loss of fresh agri-products［J］. Chinese Journal of Management Science， 2024， 32（2）：315-323.
37	Hsiao Y H， Chen M C， Chin C L. Distribution planning for perishable foods in cold chains with quality concerns： Formulation and solution procedure［J］. Trends in Food Science & Technology， 2017， 61： 80-93.
38	王晶，刘昊天，赵然. 基于食品安全的生鲜食品冷链运营优化研究［J］. 系统工程理论与实践， 2018， 38（1）： 122-134.
	Wang J， Liu H T， Zhao R. The optimization of cold chain operation based on fresh food safety［J］. Systems Engineering-Theory & Practice， 2018， 38（1）： 122-134.
39	杨晓芳，姚宇，付强. 基于新鲜度的冷链物流配送多目标优化模型［J］. 计算机应用研究， 2016， 33（4）： 1050-1053.
	Yang X F， Yao Y， Fu Q. Multi-objective optimization model of cold chain logistics distribution based on freshness［J］. Application Research of Computers， 2016， 33（4）： 1050-1053.
40	Akay B， Karaboga D， Gorkemli B， et al. A survey on the Artificial Bee Colony algorithm variants for binary， integer and mixed integer programming problems［J］. Applied Soft Computing Journal， 2021， 106： 107351.

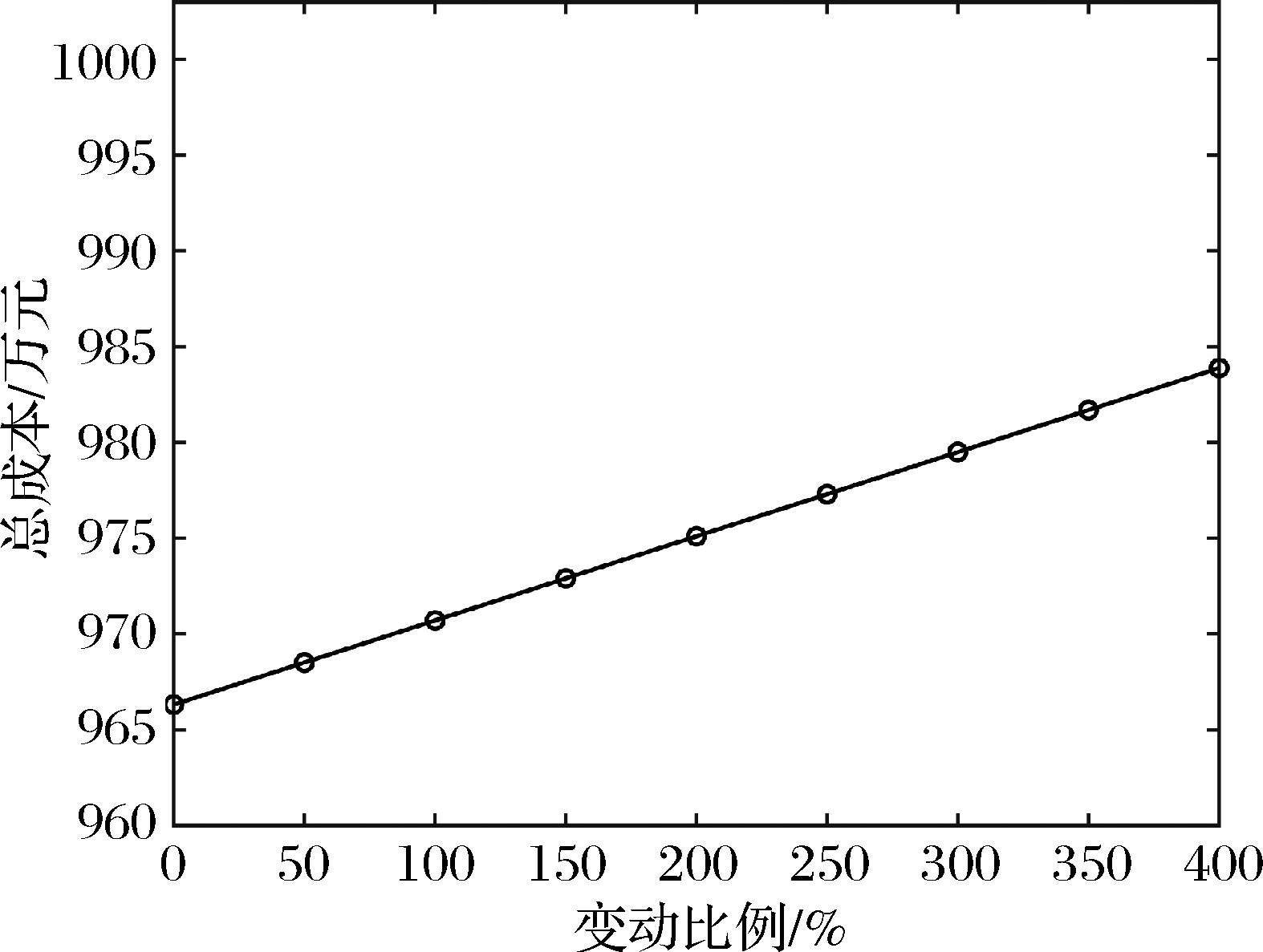

惩罚成本变动（%）	总成本（万元）	总成本增长率（%）	选址结果
0	966.3115	-	5、6、13、15、22、28、33
50	968.5086	0.23	5、6、13、15、22、28、33
100	970.7058	0.45	5、6、13、15、22、28、33
150	972.9029	0.68	5、6、13、15、22、28、33
200	975.1000	0.91	5、6、13、15、22、28、33
250	977.2971	1.14	5、6、13、15、22、28、33
300	979.4942	1.36	5、8、15、22、25、28、33
350	981.6914	1.59	5、8、15、22、25、28、33
400	983.8885	1.82	5、6、15、16、19、22、33
