中国管理科学 ›› 2024, Vol. 32 ›› Issue (3): 299-312.doi: 10.16381/j.cnki.issn1003-207x.2023.0396cstr: 32146.14.j.cnki.issn1003-207x.2023.0396
收稿日期:
2023-03-11
修回日期:
2023-06-21
出版日期:
2024-03-25
发布日期:
2024-03-25
通讯作者:
方兴华
E-mail:xinghuafang@cjlu.edu.cn
基金资助:
Huiwen Lu,Xinghua Fang(),Mingshun Song,Yujia Deng,Jia Huang
Received:
2023-03-11
Revised:
2023-06-21
Online:
2024-03-25
Published:
2024-03-25
Contact:
Xinghua Fang
E-mail:xinghuafang@cjlu.edu.cn
摘要:
连续大规模生产不仅要求企业能更准确高效地识别生产过程状态,还需要识别生产过程中潜在的质量问题,从而提前规避质量风险。现有控制图方法能监测短期内生产过程是否处于异常状态,但难以对长期生产过程潜在的质量问题进行识别和分析。为了突破这一局限,本文提出在过程控制中运用基于相对熵的方法对质量数据分布形态进行识别,通过识别质量异常模式来分析潜在的质量问题。首先,通过仿真生成五种分布模式训练集和测试集;其次,将测试集样本质量特性值的概率分布或经核密度估计拟合后的概率密度作为模型输入;最后,通过构建的相对熵函数来量化抽样样本分布与各典型质量异常模式分布的相似性和差异性,输出生产状态分类指标,并通过两个质量模式判断准则完成模式识别。仿真结果表明,本文提出的方法在质量特性值为离散和连续情况下均能对质量异常分布模式进行有效识别。通过与同类方法进行对比,发现本文方法具有更高的识别精度,可以更有效地监控和识别生产过程的质量异常。
中图分类号:
鲁惠文,方兴华,宋明顺,邓钰佳,黄佳. 基于相对熵的质量异常模式识别研究[J]. 中国管理科学, 2024, 32(3): 299-312.
Huiwen Lu,Xinghua Fang,Mingshun Song,Yujia Deng,Jia Huang. Quality Abnormal Pattern Recognition Based on Relative Entropy[J]. Chinese Journal of Management Science, 2024, 32(3): 299-312.

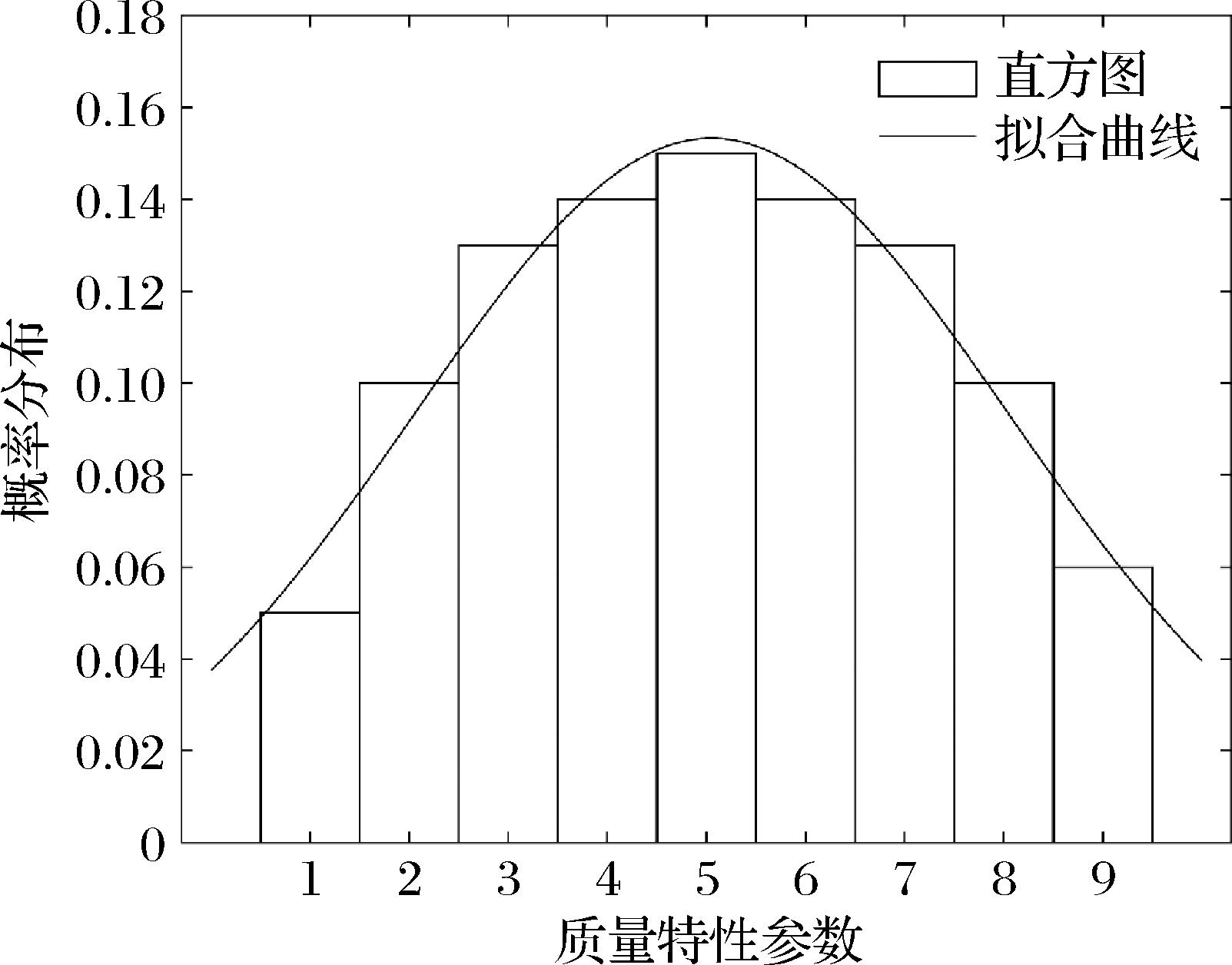

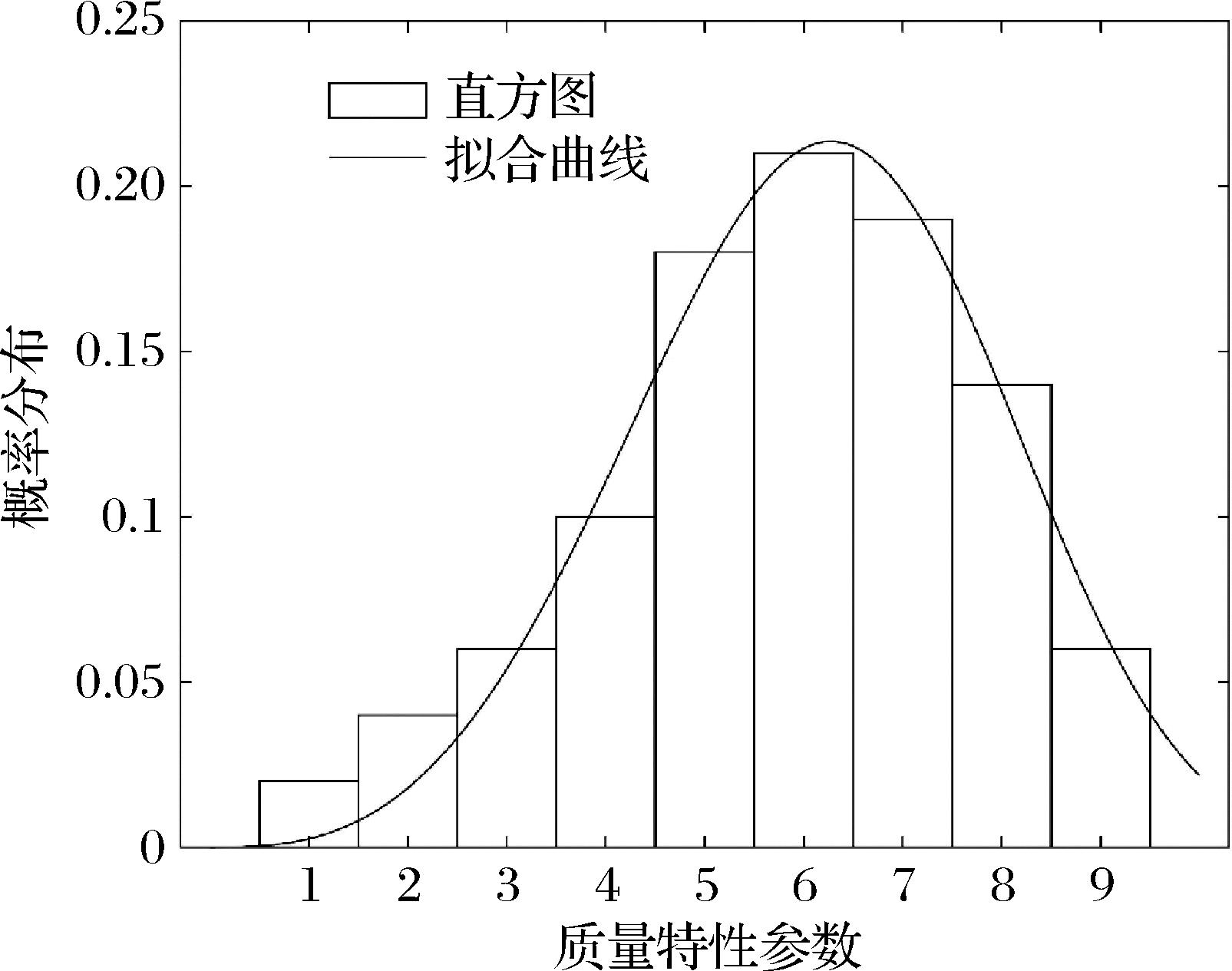

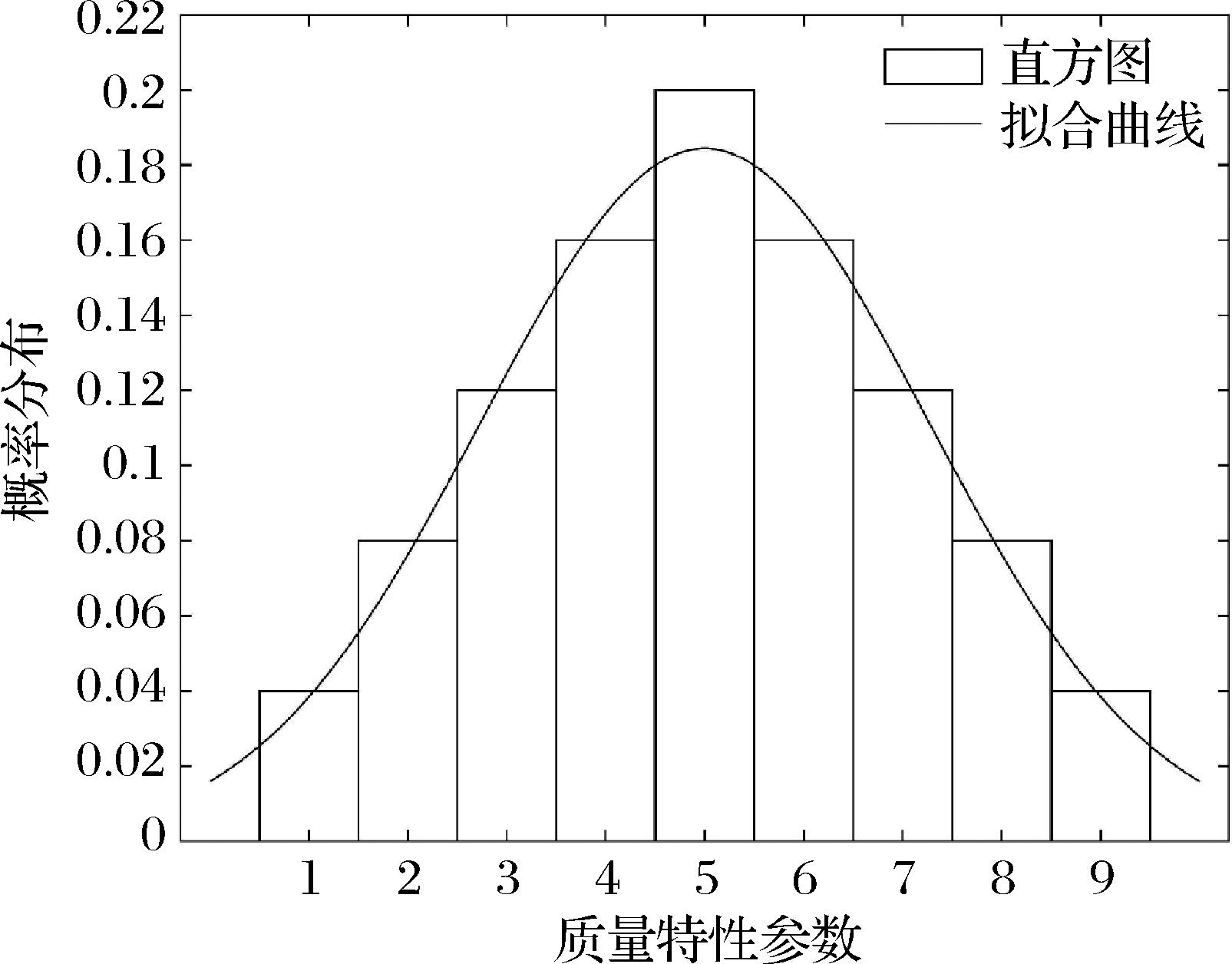

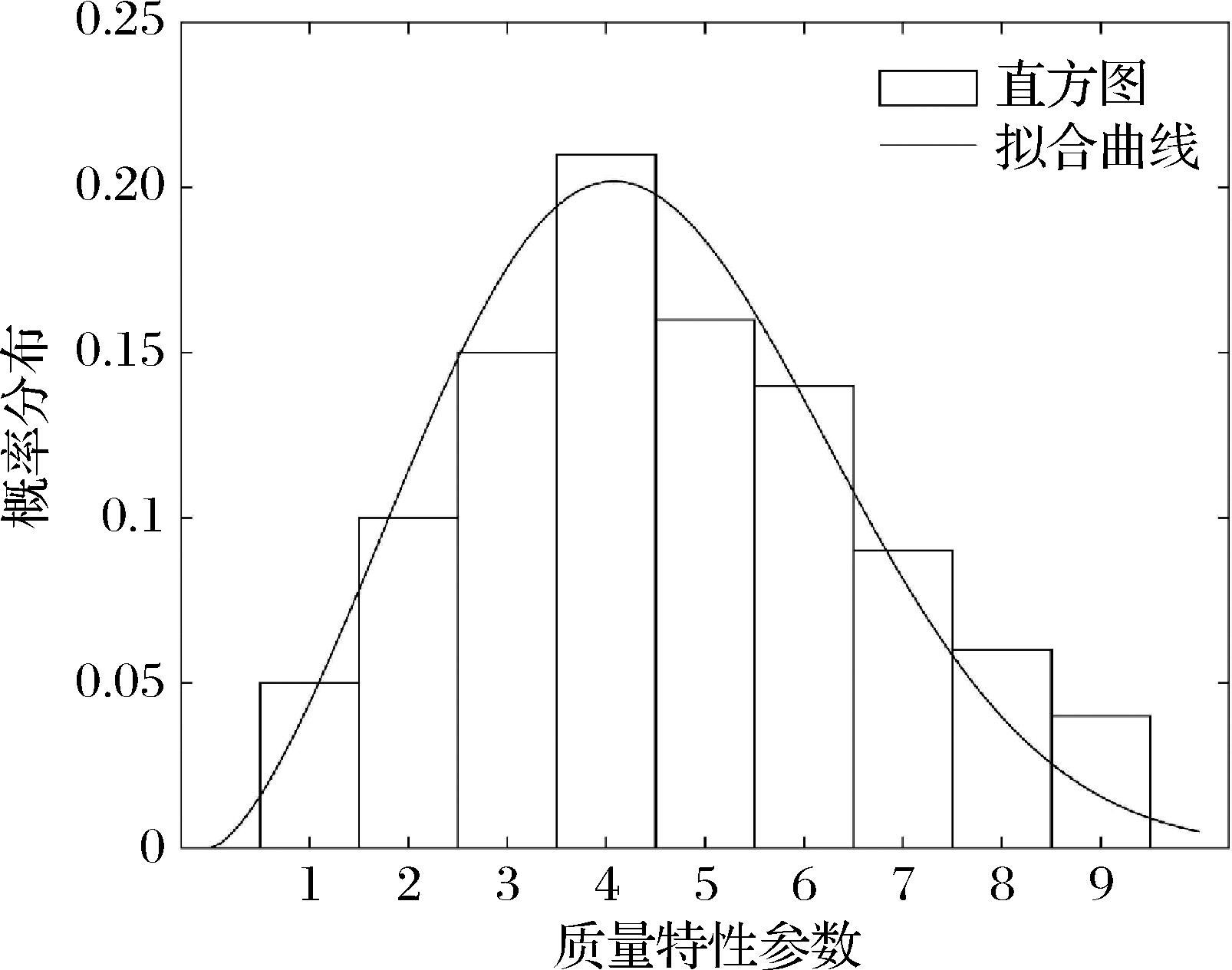

表1
离散情况下各异常分布模式概率分布"
组号 | 区间 | |||||
---|---|---|---|---|---|---|
1 | (663.65,663.75] | 0.025 | 0.075 | 0.025 | 0.1125 | 0.025 |
2 | (663.75,663.85] | 0.0625 | 0.1 | 0.05 | 0.175 | 0.0375 |
3 | (663.85,663.95] | 0.1125 | 0.1125 | 0.0875 | 0.2125 | 0.05 |
4 | (663.95,664.05] | 0.1875 | 0.1375 | 0.125 | 0.1875 | 0.075 |
5 | (664.05,664.15] | 0.225 | 0.15 | 0.1625 | 0.125 | 0.125 |
6 | (664.15,664.25] | 0.1875 | 0.1375 | 0.1125 | 0.075 | 0.1875 |
7 | (664.25,664.35] | 0.1125 | 0.1125 | 0.1375 | 0.05 | 0.2125 |
8 | (664.35,664.45] | 0.0625 | 0.1 | 0.175 | 0.0375 | 0.175 |
9 | (664.45,664.55] | 0.025 | 0.075 | 0.125 | 0.025 | 0.1125 |
表2
各生产状态下抽样样本概率分布"
组号 | 区间 | 正常型样本 | 平顶型样本 | 双峰型样本 | 偏左峰型样本 | 偏右峰型样本 |
---|---|---|---|---|---|---|
1 | (663.65,663.75] | 0.025 | 0.0875 | 0.025 | 0.1 | 0.025 |
2 | (663.75,663.85] | 0.05 | 0.1 | 0.0375 | 0.1625 | 0.0375 |
3 | (663.85,663.95] | 0.125 | 0.1125 | 0.0875 | 0.225 | 0.05 |
4 | (663.95,664.05] | 0.175 | 0.125 | 0.125 | 0.175 | 0.075 |
5 | (664.05,664.15] | 0.225 | 0.15 | 0.225 | 0.1375 | 0.1125 |
6 | (664.15,664.25] | 0.175 | 0.125 | 0.15 | 0.0875 | 0.2 |
7 | (664.25,664.35] | 0.125 | 0.1125 | 0.1 | 0.05 | 0.225 |
8 | (664.35,664.45] | 0.0625 | 0.1 | 0.2 | 0.0375 | 0.1625 |
9 | (664.45,664.55] | 0.0375 | 0.0875 | 0.05 | 0.025 | 0.1125 |
表4
连续情况下本文方法质量异常模式识别结果(前三组数据)"
实际 生产状态 | 组别 | 各异常分布模式下参考概率密度函数 | |||||
---|---|---|---|---|---|---|---|
正常型 | 1 | 0.1471 | 3.0491 | 0.5426 | 0.7555 | 0.5717 | |
2 | 0.0676 | 3.5682 | 0.4536 | 0.9082 | 0.6138 | ||
3 | 0.6173 | 3.2701 | 0.8085 | 1.9990 | 0.3854 | ||
平顶型 | 1 | 10.9016 | 0.4409 | 8.1541 | 5.9751 | 4.5511 | |
2 | 6.9010 | 0.1209 | 4.9365 | 3.9987 | 3.2251 | ||
3 | 6.9487 | 0.1534 | 5.4575 | 4.0236 | 2.5367 | ||
双峰型 | 1 | 12.8379 | 4.4870 | 0.0592 | 2.5017 | 2.2468 | |
2 | 12.5993 | 4.2614 | 0.0616 | 2.5801 | 2.1333 | ||
3 | 15.2103 | 4.3650 | 0.1749 | 2.7952 | 2.8101 | ||
偏左峰型 | 1 | 1.1832 | 3.6800 | 1.2999 | 0.5131 | 2.1266 | |
2 | 1.3484 | 3.8035 | 1.4694 | 0.6042 | 2.3609 | ||
3 | 0.9237 | 4.6595 | 1.1970 | 0.4783 | 2.0006 | ||
偏右峰型 | 1 | 0.9931 | 2.3243 | 1.3585 | 2.1843 | 0.3822 | |
2 | 1.2937 | 2.3823 | 1.1193 | 2.6115 | 0.4612 | ||
3 | 0.7496 | 4.3715 | 0.9244 | 2.6061 | 0.3126 |
表6
离散情况下各对比方法的质量异常模式识别结果"
典型实际生产状态 | 对比方法 | ||||||
---|---|---|---|---|---|---|---|
正常型 | 相关系数 | 0.9899 | 0.9710 | 0.4943 | 0.2696 | 0.3411 | |
余弦相似度 | 0.9970 | 0.9462 | 0.8884 | 0.8090 | 0.8276 | ||
欧式距离 | 0.0306 | 0.1287 | 0.1794 | 0.2398 | 0.2278 | ||
平顶型 | 相关系数 | 0.9742 | 0.9687 | 0.4873 | 0.2921 | 0.2921 | |
余弦相似度 | 0.9215 | 0.9974 | 0.9408 | 0.8750 | 0.8750 | ||
欧式距离 | 0.1551 | 0.0250 | 0.1225 | 0.1871 | 0.1871 | ||
双峰型 | 相关系数 | 0.6885 | 0.7208 | 0.8289 | -0.1686 | 0.5839 | |
余弦相似度 | 0.9144 | 0.9188 | 0.9559 | 0.6962 | 0.8918 | ||
欧式距离 | 0.1620 | 0.1541 | 0.1146 | 0.3021 | 0.1803 | ||
偏左峰型 | 相关系数 | 0.3826 | 0.4019 | -0.3754 | 0.9877 | -0.6469 | |
余弦相似度 | 0.8337 | 0.8876 | 0.7241 | 0.9969 | 0.5807 | ||
欧式距离 | 0.2250 | 0.1777 | 0.2784 | 0.0306 | 0.3536 | ||
偏右峰型 | 相关系数 | 0.2955 | 0.3125 | 0.6811 | -0.6993 | 0.9929 | |
余弦相似度 | 0.8041 | 0.8684 | 0.9244 | 0.5518 | 0.9980 | ||
欧式距离 | 0.2456 | 0.1936 | 0.1490 | 0.3678 | 0.0250 |
1 | 刘玉敏, 刘莉. 基于统计特征的动态过程质量异常模式识别[J]. 统计与决策, 2017, 19: 32-36. |
Liu Y M, Liu L. Dynamic process of quality abnormal pattern recognition based on statistical features[J]. Statistics & Decision, 2017, 19: 32-36. | |
2 | Bakir S T. Distribution-free quality control charts based on signed-rank-like statistics[J]. Communications in Statistics, 2006, 35(4): 743-757. |
3 | Page E S. Continuous inspection scheme[J]. Biometrika, 1954, 41(1): 100-104. |
4 | Roberts S W. Control chart tests based on geometric moving averages[J]. Technometrics, 1959, 1: 239-250. |
5 | Park S H, Kim S B. Multivariate control charts that combine the Hotelling T 2 and classification algorithms [J]. Journal of the Operational Research Society, 2019, 70(6): 889-897. |
6 | 杨铭, 宋明顺, 方兴华. 基于经济性原则的控制图构建及仿真[J]. 统计与决策, 2020, 36(2): 29-33. |
Yang M, Song M S, Fang X H. Construction and simulation of control chart based on economic principle[J]. Statistics & Decision, 2020, 36(2): 29-33. | |
7 | Haghtalab S, Xanthopoulos P, Madani K. A robust unsupervised consensus control chart pattern recognition framework[J]. Expert Systems with Applications, 2015, 42: 6767-6776. |
8 | Ünlü R. A robust data simulation technique to improve early detection performance of a classifier in control chart pattern recognition[J]. Information Sciences, 2021, 548: 18-36. |
9 | Maged A, Xie M. Recognition of abnormal patterns in industrial processes with variable window size via convolutional neural networks and AdaBoost[J]. Journal of Intelligent Manufacturing, 2022, 34(4): 1-23. |
10 | Fuqua D, Razzaghi T. A cost-sensitive convolution neural network learning for control chart pattern recognition[J]. Expert Systems with Applications, 2020, 150: 113275. |
11 | 李丽丽, 陈琨, 高建民, 等. 采用优化概率神经网络的质量异常识别方法[J]. 计算机集成制造系统, 2021, 27(10): 2813-2820. |
Li L L, Chen K, Gao J M, et al. Quality anomaly recognition method based on optimized probabilistic neural network[J]. Computer Integrated Manufacturing Systems, 2021, 27(10): 2813-2820. | |
12 | Cuentas S, Garcia E, Peñabaena-Niebles R. An SVM-GA based monitoring system for pattern recognition of autocorrelated processes[J]. Soft Computing, 2022, 26: 5159-5178. |
13 | Ünlü R. Cost-oriented LSTM method for possible expansion of control charting signals[J]. Computers & Industrial Engineering, 2021, 154: 107163. |
14 | Zaman M, Hassan A. Improved statistical features-based control chart patterns recognition using ANFIS with fuzzy clustering[J]. Neural Computing and Applications, 2019, 31: 5935-5949. |
15 | 万育微,朱波,伍常亮,等.利用随机森林识别二元自相关过程异常[J].制造业自动化, 2020, 42(2): 60-64. |
Wan Y W, Zhu B, Wu C L, et al. Using random forest for out-of-control patterns recognition in bivariate autocorrelated process[J]. Manufacturing Automation, 2020, 42(2): 60-64. | |
16 | Zan T, Liu Z H, Su Z F, et al. Statistical process control with intelligence based on the deep learning model[J]. Applied Sciences, 2019, 10(1): 308. |
17 | Wang M, Zan T, Fei R Y. Statistical process control with intelligence using fuzzy ART neural networks[J]. Frontiers of Mechanical Engineering in China, 2010, 5(2): 149-156. |
18 | Lu Z Y, Wang M Q, Dai W. A condition monitoring approach for machining process based on control chart pattern recognition with dynamically-sized observation windows[J]. Computer & Industrial Engineering, 2020, 142: 106360. |
19 | Zaman M, Hassan A. Improved statistical features-based control chart patterns recognition using ANFIS with fuzzy clustering[J]. Neural Computing and Applications, 2019, 31: 5935-5949. |
20 | Ferracuti F, Giantomassi A, Iarlori S, et al. Electric motor defects diagnosis based on kernel density estimation and Kullback-Leibler divergence in quality control scenario[J]. Engineering Applications of Artificial Intelligence, 2015, 44: 25-32. |
21 | Zhou X J, Dennis L, Hu X L, et al. Robust parameter design based on Kullback-Leibler divergence[J]. Computer & Industry Engineering, 2019, 135: 913-921. |
22 | 田晟, 曾莉莉. 基于改进核密度估计的电动出租车快速充电行为研究[J].交通运输系统工程与信息, 2021, 21(4): 221-229. |
Tian S, Zeng L L. Fast charging behavior of electric taxi based on improved kernel density estimation[J]. Journal of Transportation Systems Engineering and Information Technology, 2021, 21(4): 221-229. | |
23 | 宋平凡, 谭常春, 祁毓. 基于相对熵方法的长寿债券定价研究[J]. 中国管理科学, 2019, 27(5): 32-41. |
Song P F, Tan C C, Qi Y. Pricing longevity bond with relative entropy approach[J]. Chinese Journal of Management Science, 2019, 27(5): 32-41. | |
24 | 崔东虎,赵亚慧,崔荣一.基于相对熵的KNN文本分类方法的研究[J].延边大学学报(自然科学版), 2021, 47(2): 175-179. |
Cui D H, Zhao Y H, Cui R Y. Research on text classification of K-nearest neighbor algorithm based on relative entropy[J]. Journal of Yanbian University(Natural Science Edition), 2021, 47(2): 175-179. | |
25 | 王印松,丁梦婷,孙天舒,等.基于改进相对熵的控制系统性能评价方法[J].控制工程, 2023,30(4):577-582. |
Wang Y S, Ding M T, Sun T S, et al. Relative entropy based approach to performance assessment of control systems[J]. Control Engineering of China, 2021, 30(4):577-582. | |
26 | 何会民. 基于随机游走模型和KL-divergence的聚类算法[J]. 计算机工程, 2008(16): 224-226. |
He H M. Clustering algorithm based on random walk model and KL-divergence[J]. Computer Engineering, 2008(16): 224-226. | |
27 | 高效, 敬东, 陈钢.采用相对熵评价雷达相对系统误差估值[J].雷达科学与技术, 2020, 18(4): 443-446. |
Gao X, Jing D, Chen G. Application of relative entropy to evaluation of relative system error of radar[J]. Radar Science and Technology, 2020, 18(4): 443-446. | |
28 | Rosnani G, Aulia I, Dyah P. Application of quality function deployment (QFD) method in meeting customer satisfaction in the bookshelf industry[J]. IOP Conference Series: Materials Science and Engineering, 2020, 1003(1): 012005. |
29 | Abramson I S. On bandwidth variation in kernel estimates-a square root law[J]. The Annals of Statistics, 1982, 10(4): 1217-1223. |
30 | 晁宇晴. 利用频率(频数)直方图分析零件关键尺寸质量特性[J].机械工业标准化与质量, 2006(3): 17-19+28. |
Chao Y Q. Analysis of critical dimension and quality characteristics of parts using frequency (frequency) histogram[J]. Machinery Industry Standardization & Quality, 2006(3): 17-19+28. | |
31 | Yang J W, Yang M S. A control chart pattern recognition system using a statistical correlation coefficient method[J]. Computers & Industrial Engineering, 2005, 48(2): 205-221. |
32 | 郭远晶, 魏燕定, 金晓航, 等. 频谱密度函数相似性比较的齿轮箱故障诊断[J]. 振动工程学报, 2018, 31(1): 157-164. |
Guo Y J, Wei Y D, Jin X H, et al. Gearbox fault diagnosis using similarity comparision of frequency spectrum density function[J]. Journal of Vibration Engineering, 2018, 31(1): 157-164. | |
33 | 张文豪, 施展.基于欧式距离与灰色预测模型的机床主轴剩余寿命研究[J].制造业自动化,2019, 41(3): 93-96. |
Zhang W H, Shi Z. Research on residual life of machine tool spindle based on euclidean distance and grey prediction model[J]. Manufacturing Automation, 2019, 41(3): 93-96. | |
34 | 周伟, 潘海鹏, 吴平, 等. 基于DPCA和KL散度的微小故障检测方法[J]. 传感器与微系统, 2020, 39(3): 135-138. |
Zhou W, Pan H P, Wu P, et al. Tiny fault detection method based on DPCA and KL divergence[J]. Transducer and Microsystem Technologies, 2020, 39(3): 135-138. |
