设置货架缓存区的订单和货架排序问题研究

doi:10.16381/j.cnki.issn1003-207x.2024.0255

Abstract

Abstract:

With the rapid development of e-commerce enterprises and the wide application of robotic mobile fulfillment systems， the importance of order picking for warehousing operational efficiency is increasingly evident， and configuring rack buffer zones can enhance order picking efficiency. Therefore， it focuses on the research of the order and rack sequencing problem with rack buffer zones. In the scenario of limited capacity in the rack buffer zone， it aims to jointly optimize the order picking sequence， rack retrieval sequence， and buffering strategy. Taking into consideration factors such as the shared storage mode for products， the quantity of each product stored on individual racks， the ordered quantities in customer orders， and the limited capacity of the buffer zone， an integer programming model is established for the order and rack sequencing problem with rack buffer zones. The objective is to minimize the number of rack retrievals while considering these factors. Considering the characteristics of the problem， an interactive heuristic algorithm is designed to synchronously address the three sub-problems. Through case study experiments， the correctness and effectiveness of the proposed model and algorithm have been verified. The experimental results indicate that the average relative deviation between the feasible solutions obtained by the interactive heuristic algorithm and the exact solutions is approximately 5.4%， demonstrating that the proposed algorithm can achieve high-quality feasible solutions in a relatively short time. Furthermore， comparisons with the baseline algorithm and the heuristic algorithm without the rack buffer zone further validate the efficiency of the proposed algorithm. Specifically， the average improvement in the objective function achieved by the proposed algorithm is about 9.6% compared to the benchmark algorithm， and the implementation of the rack buffer zone significantly reduces the number of times racks are transported during the order fulfillment picking process by about 14.1%. The proposed model and algorithm in this paper provide decision-making foundations for enterprises to strategically set up rack buffer zones， reduce the number of rack retrievals， and enhance order-picking efficiency.

Key words: robotic mobile fulfillment system, order and rack sequencing, rack buffer zone, interactive heuristic algorithm, product quantity

CLC Number:

O211.4

Qianqian Han,Kang Wang,Zhenping Li. Study on the Order and Rack Sequencing Problem with Rack Buffer Zones[J]. Chinese Journal of Management Science, 2026, 34(4): 168-177.

Figures/Tables 10

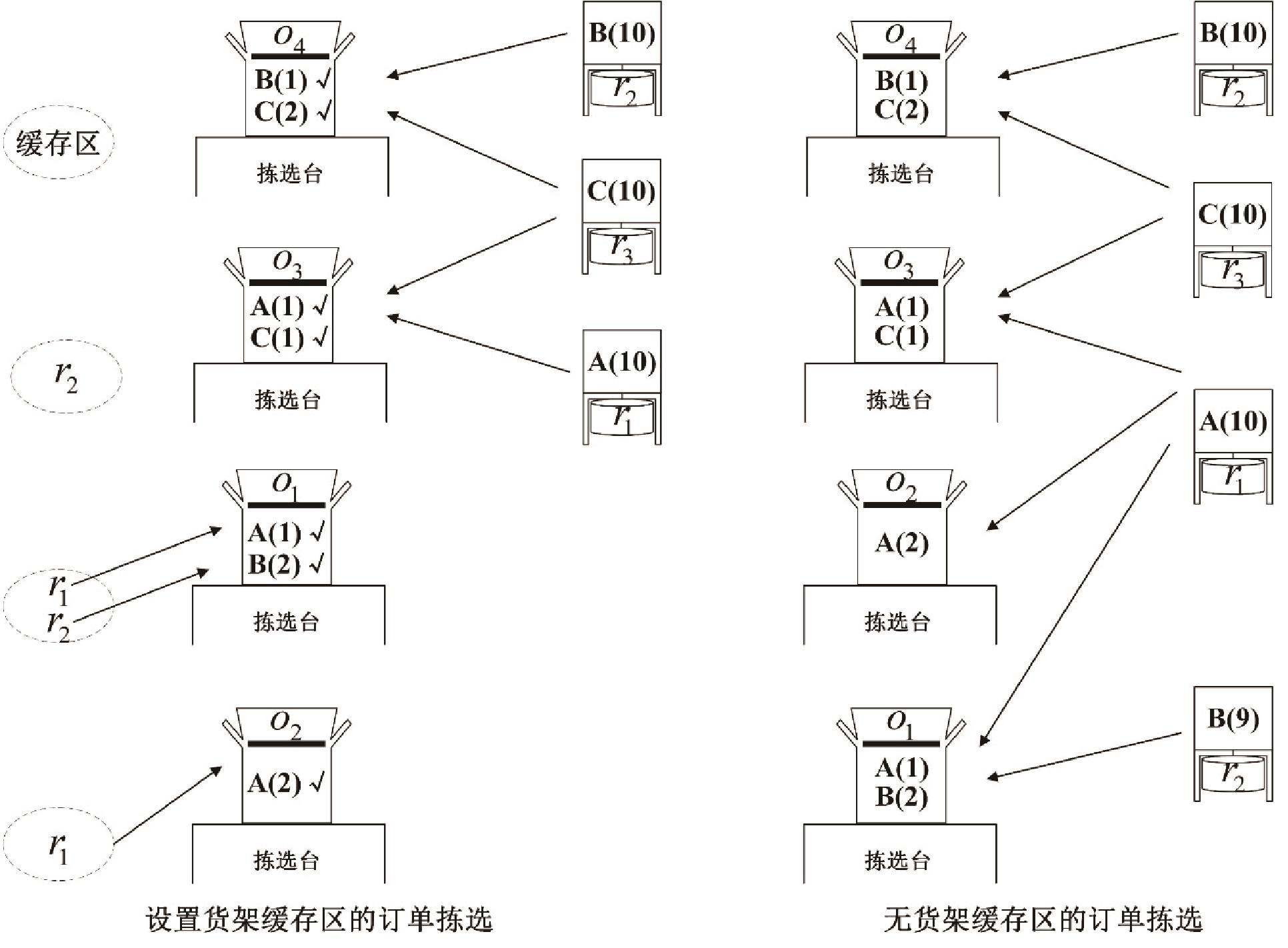

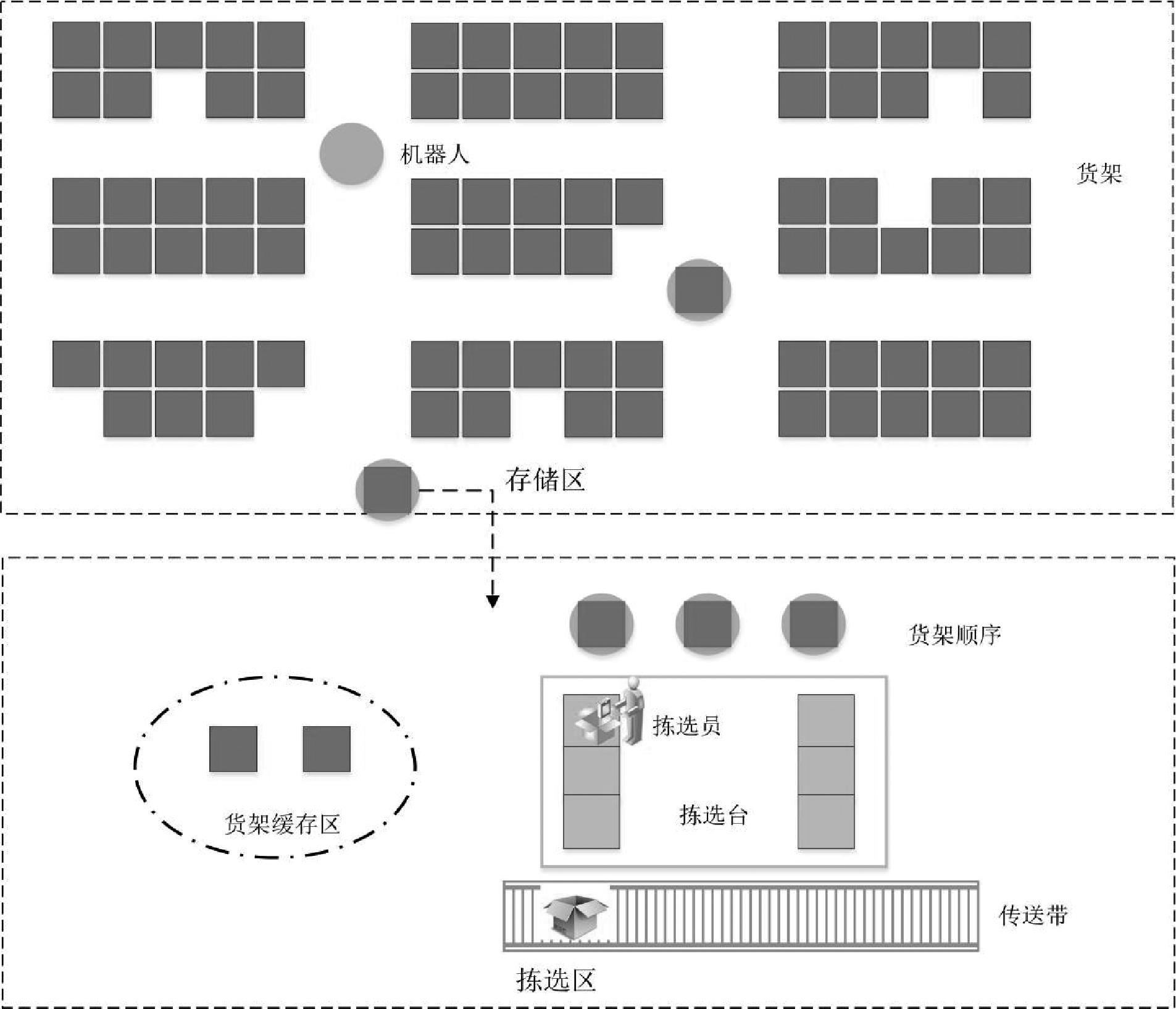

符号	定义
$N$	订单数量， $n = 1, …, N$
$K$	货架数量， $k = 1, …, K$
$S$	商品数量， $s = 1, …, S$
$P$	时间槽数量， $p = 1, …, P$
$C$	拣选台容量
$H$	货架缓存区容量
$O$	订单集合， $o n ∈ O$
$R$	货架集合， $r k ∈ R$
$q k s$	货架 $r k$ 上存储商品 $s$ 的数量
$d n s$	订单 $o n$ 中订购商品 $s$ 的数量
	决策变量
$x n p$	0-1变量，若订单 $o n$ 在时间槽 $p$ 被拣选为1，否则为0
$y k p$	0-1变量，若在时间槽 $p$ 需要货架 $r k$ 为1，否则为0
$c k p$	0-1变量，若在时间槽 $p$ 将货架 $r k$ 存入缓存区为1，否则为0
$u k p$	0-1变量，若在时间槽 $p$ 出库货架 $r k$ 为1，否则为0
$z n k p s$	整数变量，在时间槽 $p$ 从货架 $r k$ 向订单 $o n$ 中拣选商品s的数量

参数名称	小规模参数取值	大规模参数取值
订单数量（ $N$ ）	4, 6	100, 150, 200
货架数量（ $K$ ）	8, 10	400, 500, 600
商品数量（ $S$ ）	10, 15	1000,1500,2000
拣选台容量（ $C$ ）	3	15
缓存区容量（ $H$ ）	3	10

算例参数	Gurobi		交互启发式算法		$N u m$	$G a p 1$ (%)
$N - K - S$	$z g$	$t g$	$z 1$	$t 1$	$N u m$	$G a p 1$ (%)
4-8-10	2.6	8.8	2.8	0.04	4	7.1
4-8-15	2.4	3.9	2.6	0.05	4	7.7
4-10-10	2.4	127	2.4	0.04	5	0
4-10-15	2.6	9.8	2.8	0.04	4	7.1
6-8-10	2.8	140.4	3.0	0.05	4	6.7
6-8-15	3.0	264.2	3.0	0.05	5	0
6-10-10	2.6	289.7	2.8	0.04	4	7.1
6-10-15	2.8	264.9	3.0	0.05	4	6.7
平均值	2.65	138.6	2.8	0.05	4.25	5.4

算例参数	交互启发式算法		基准算法		无缓存区算法		$G a p 2$ (%)	$G a p 3$ (%)
$N - K - S$	$z ¯ 1$	$t ¯ 1$	$z ¯ 2$	$t ¯ 2$	$z ¯ 3$	$t ¯ 3$	$G a p 2$ (%)	$G a p 3$ (%)
100-400-1000	113.0	0.2	121.6	0.2	130.4	0.2	7.1	13.3
100-400-1500	111.8	0.2	118.8	0.2	124.8	0.2	5.9	10.4
100-400-2000	114.0	0.3	121.0	0.3	123.6	0.3	5.8	7.8
100-500-1000	111.0	0.3	122.0	0.3	129.2	0.2	9.0	14.1
100-500-1500	125.6	0.3	136.8	0.3	146.4	0.3	8.2	14.2
100-500-2000	132.0	0.3	141.8	0.4	149.6	0.4	6.9	11.8
100-600-1000	124.0	0.3	132.6	0.4	143.4	0.4	6.5	13.5
100-600-1500	127.4	0.3	132.8	0.5	141.6	0.4	4.1	10.0
100-600-2000	133.0	0.3	140.6	0.4	148.6	0.3	5.4	10.5
150-400-1000	144.0	0.3	161.4	0.4	169.4	0.3	10.8	15.0
150-400-1500	148.4	0.3	162.4	0.4	171.0	0.4	8.6	13.2
150-400-2000	152.0	0.3	173.4	0.4	181.8	0.4	12.3	16.4
150-500-1000	151.2	0.4	167.8	0.5	181.0	0.4	9.9	16.5
150-500-1500	160.0	0.4	178.6	0.5	191.8	0.4	10.4	16.6
150-500-2000	162.8	0.4	180.6	0.4	189.6	0.4	9.9	14.1
150-600-1000	164.6	0.4	181.0	0.5	196.4	0.5	9.1	16.2
150-600-1500	171.2	0.5	194.8	0.6	200.2	0.5	12.1	14.5
150-600-2000	179.4	0.5	197.6	0.6	205.2	0.5	9.2	12.6
200-400-1000	181.2	0.5	204.2	0.5	214.6	0.4	11.3	15.6
200-400-1500	184.8	0.5	208.0	0.5	219.4	0.4	11.2	15.8
200-400-2000	184.8	0.4	211.8	0.5	217.2	0.4	12.7	14.9
200-500-1000	189.6	0.5	215.4	0.6	226.8	0.5	12.0	16.4
200-500-1500	203.0	0.5	229.0	0.6	238.8	0.5	11.4	15.0
200-500-2000	216.4	0.7	239.8	0.7	252.4	0.6	9.8	14.3
200-600-1000	201.2	0.6	226.2	0.7	237.6	0.5	11.1	15.3
200-600-1500	221.6	0.7	245.2	0.8	258.6	0.7	9.6	14.3
200-600-2000	226.0	0.7	248.6	0.8	258.0	0.7	9.1	12.4
平均值	160.5	0.4	177.5	0.5	186.9	0.4	9.6	14.1

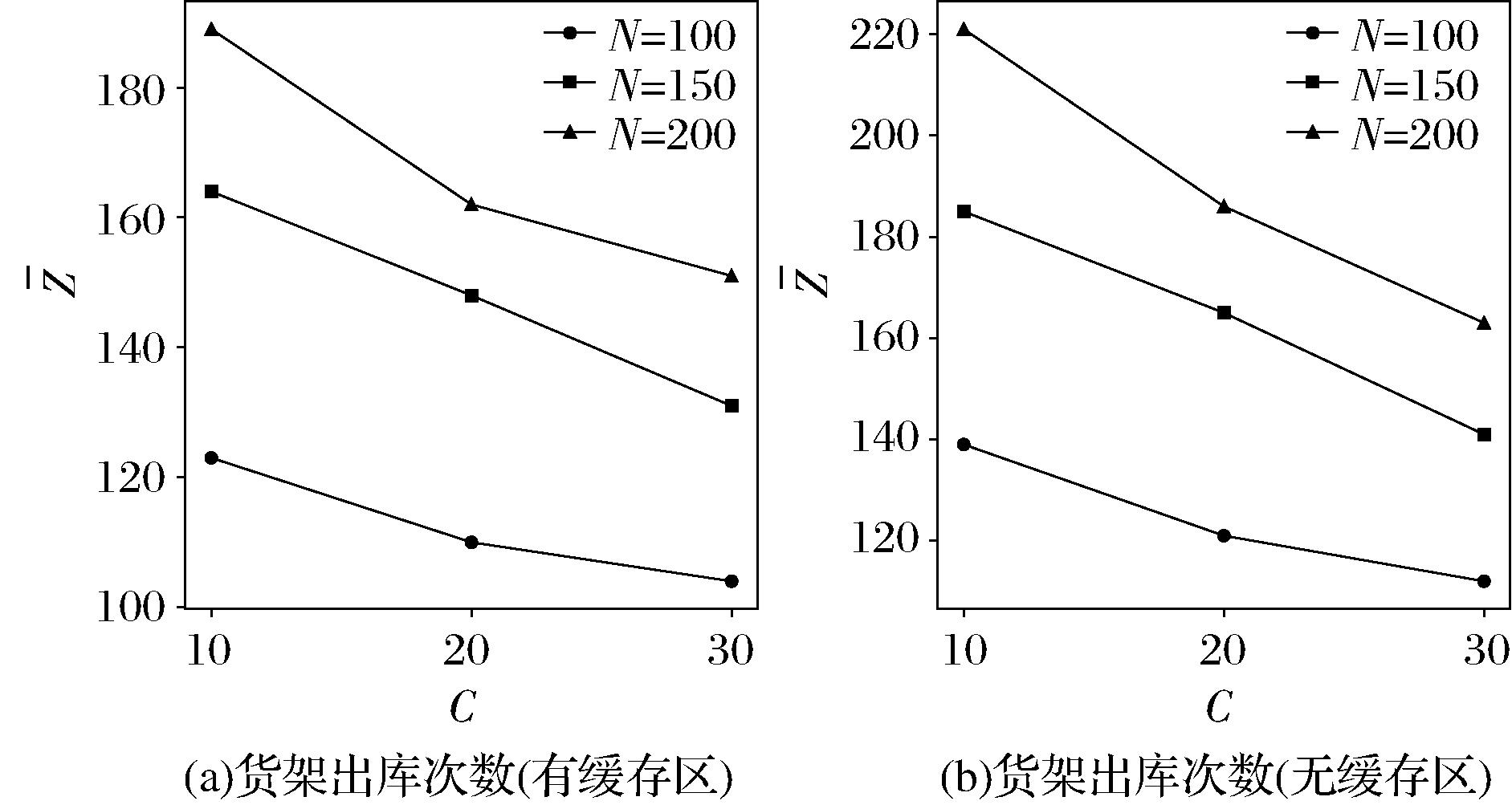

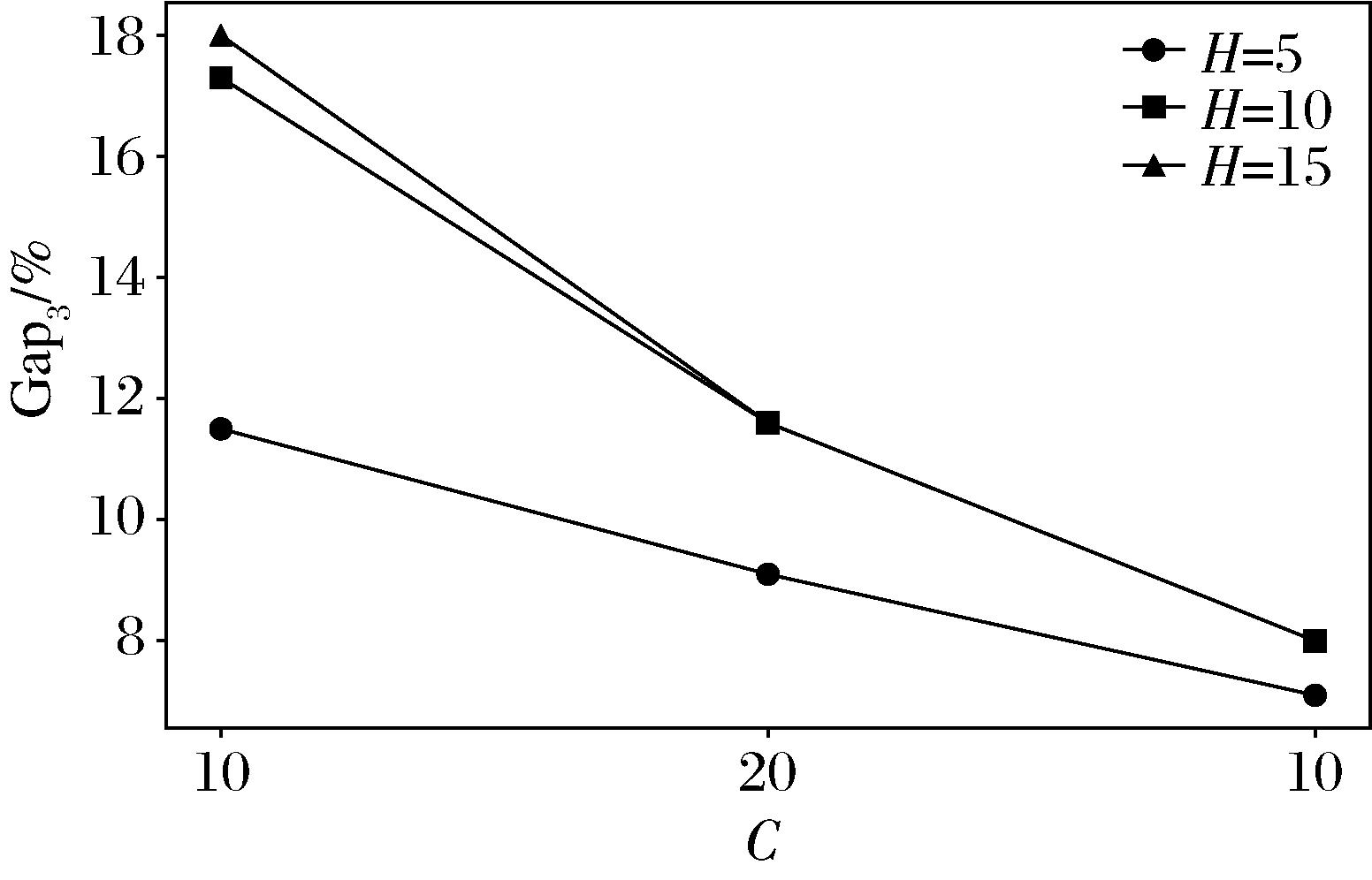

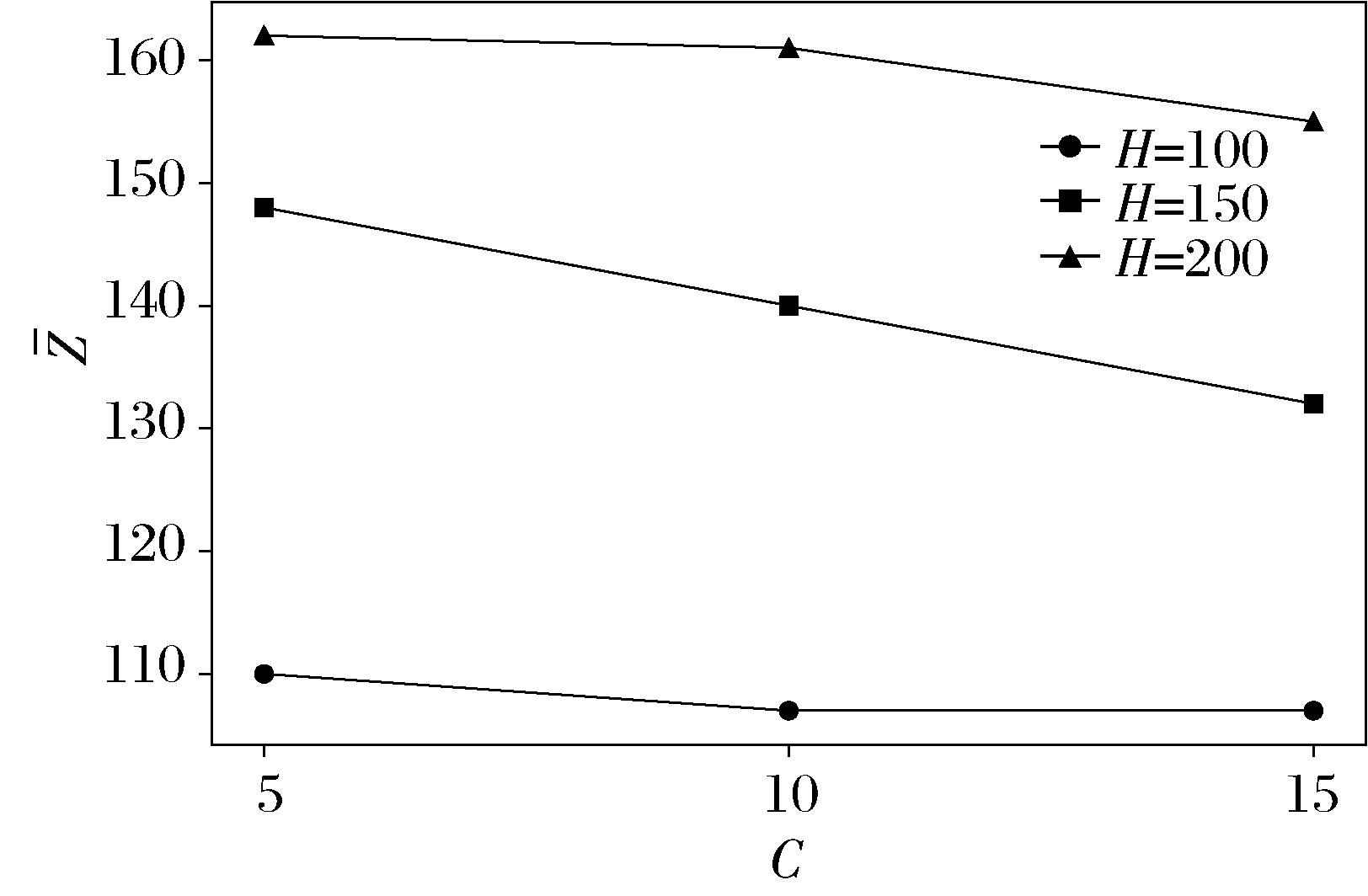

References 27

[1]	中华人民共和国商务部. 中国电子商务报告（2022）［R/OL］.（2023-06-09）［2023-06-16］..
	Ministry of Commerce of the People’s Republic of China.China E-commerce report（2022）［EB/OL］.（2023-06-09）［2023-06-16］..
[2]	Statista. Share of total supply costs worldwide in 2018， by type of cost［EB/OL］.（2022-04-19）［2023-06-16］..
[3]	李珍萍，贾顺顺，卜晓奇，等. 无人仓系统储位分配问题的优化模型与算法［J］. 中国管理科学， 2022， 30（1）： 124-135.
	Li Z P， Jia S S， Bu X Q， et al. The optimization model and algorithm for storage location assignment problem in unmanned warehouse system［J］. Chinese Journal of Management Science， 2022， 30（1）： 124-135.
[4]	de Koster R B M. Automated and robotic warehouses： Developments and research opportunities［J］. Logistics and Transport， 2018， 38（2）： 33-40.
[5]	Li Z P， Zhang J L， Zhang H J. Optimal selection of movable shelves under cargo-to-person picking mode［J］. International Journal of Simulation Modelling， 2017， 16（1）： 145-156.
[6]	Zhuang Y， Zhou Y， Hassini E， et al. Rack retrieval and repositioning optimization problem in robotic mobile fulfillment systems［J］. Transportation Research Part E： Logistics and Transportation Review，2022，167： 102920.
[7]	Pansart L， Catusse N， Cambazard H. Exact algorithms for the order picking problem［J］. Computers & Operations Research， 2018， 100： 117-127.
[8]	Henn S. Algorithms for on-line order batching in an order picking warehouse［J］. Computers & Operations Research， 2012， 39（11）： 2549-2563.
[9]	Gil-Borrás S， Pardo E G， Alonso-Ayuso A， et al. A heuristic approach for the online order batching problem with multiple pickers［J］. Computers & Industrial Engineering， 2021， 160： 107517.
[10]	Bozer Y A， Kile J W. Order batching in walk-and-pick order picking systems［J］. International Journal of Production Research， 2008， 46（7）： 1887-1909.
[11]	Chen F， Wang H， Qi C， et al. An ant colony optimization routing algorithm for two order pickers with congestion consideration［J］. Computers & Industrial Engineering， 2013， 66（1）： 77-85.
[12]	Chen F， Wang H， Xie Y， et al. An ACO-based online routing method for multiple order pickers with congestion consideration in warehouse［J］. Journal of Intelligent Manufacturing， 2016， 27（2）： 389-408.
[13]	王旭坪，张珺，易彩玉. B2C电子商务环境下订单拣选与配送联合调度优化［J］. 中国管理科学， 2016， 24（7）： 101-109.
	Wang X P， Zhang J， Yi C Y. Integrated scheduling of order picking and delivery under B2C E-commerce［J］. Chinese Journal of Management Science， 2016， 24（7）： 101-109.
[14]	Scholz A， Schubert D， Wäscher G. Order picking with multiple pickers and due dates-Simultaneous solution of order batching， batch assignment and sequencing， and picker routing problems［J］. European Journal of Operational Research， 2017， 263（2）： 461-478.
[15]	张国维，吴凌云. 考虑商品数量和商品拣选成本的AGV智能仓库订单分批问题研究［J］. 运筹与管理， 2022， 31（12）： 9-15.
	Zhang G W， Wu L Y. Research on the order batching problem in the AGV-based intelligent warehouse considering the product quantity and the product picking cost［J］. Operations Research and Management Science， 2022， 31（12）： 9-15.
[16]	李珍萍，韩倩倩，仪明超. 设置货箱缓存区的自动小车存储及取货系统订单分批拣选问题［J］. 计算机集成制造系统， 2022， 28（8）： 2605-2618.
	Li Z P， Han Q Q， Yi M C. Orders batching and picking problem of AVS/RS system with picking buffer area［J］. Computer Integrated Manufacturing Systems， 2022， 28（8）： 2605-2618.
[17]	Füßler D， Boysen N. Efficient order processing in an inverse order picking system［J］. Computers & Operations Research， 2017， 88： 150-160.
[18]	Boysen N， Briskorn D， Emde S. Parts-to-picker based order processing in a rack-moving mobile robots environment［J］. European Journal of Operational Research， 2017， 262（2）： 550-562.
[19]	Yang X， Hua G， Hu L， et al. Joint optimization of order sequencing and rack scheduling in the robotic mobile fulfilment system［J］. Computers & Operations Research， 2021， 135： 105467.
[20]	Justkowiak J E， Pesch E. Stronger mixed-integer programming-formulations for order- and rack-sequencing in robotic mobile fulfillment systems［J］. European Journal of Operational Research， 2023， 305（3）： 1063-1078.
[21]	Zhuang Y， Zhou Y， Yuan Y， et al. Order picking optimization with rack-moving mobile robots and multiple workstations［J］. European Journal of Operational Research， 2022， 300（2）： 527-544.
[22]	Jiang X， Sun L， Zhang Y， et al. Order batching and sequencing for minimising the total order completion time in pick-and-sort warehouses［J］. Expert Systems with Applications， 2022， 187： 115943.
[23]	古文宇，王红军，邢济收. 基于遗传算法与Flexsim的生产线缓冲区优化研究［J］. 组合机床与自动化加工技术， 2020（10）： 51-54+58.
	Gu W Y， Wang H J， Xing J S. Research on buffer optimization of production line based on genetic algorithm and flexsim［J］. Modular Machine Tool & Automatic Manufacturing Technique， 2020（10）： 51-54+58.
[24]	吴颖颖，孟祥旭，王艳艳，等. “货到人”拣选系统订单排序优化［J］.机械工程学报，2016， 52（4）： 206-212.
	Wu Y Y， Meng X X， Wang Y Y， et al. Order sequence optimization for “part-to-picker” order picking system［J］. Journal of Mechanical Engineering， 2016， 52（4）： 206-212.
[25]	田彬，吴颖颖，吴耀华，等. “四向车”拣选系统订单排序优化［J］. 机械工程学报， 2019， 55（18）： 225-232.
	Tian B， Wu Y Y， Wu Y H， et al. Order sequencing optimization for “four-way” shuttle based order picking system［J］. Journal of Mechanical Engineering， 2019， 55（18）： 225-232.
[26]	赵金龙，蒋忠中，万明重，等. 考虑配送截止时间的“货到人”订单拣选优化问题研究［J］. 中国管理科学， 2025， 33（3）： 239-255.
	Zhao J L， Jiang Z Z， Wan M Z， et al. Order picking optimization in “parts-to-picker” systems considering delivery due dates［J］. Chinese Journal of Management Science， 2025， 33（3）： 239-255.
[27]	Xie L， Thieme N， Krenzler R， et al. Introducing split orders and optimizing operational policies in robotic mobile fulfillment systems［J］. European Journal of Operational Research， 2021， 288（1）： 80-97.

订单中商品种类数	订单出现概率
1	0.43
2	0.26
3	0.16
4	0.09
5	0.06
